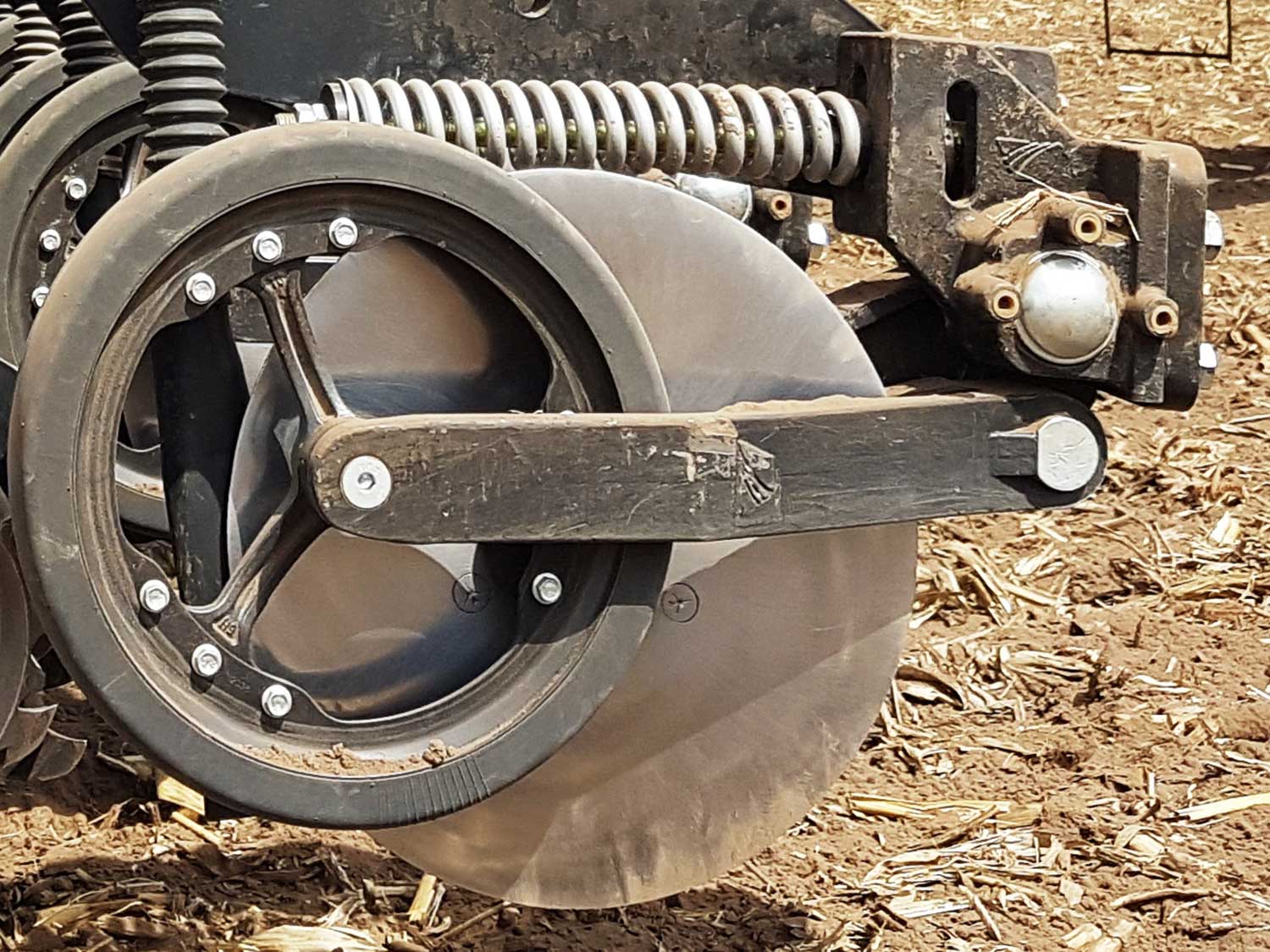

ALR0100
Symmetric components: you no longer have to keep separate parts for left and right coulters! Only the fertilizer boot and the mounting plate are LH or RH.
Easy disc replacement: simply remove the depth pin a drop the gauge wheel for full access to the disc!
Can be installed on most brands of planters and applicators.
Adapted to all tillage systems: from conventional to no-till.
- 5 easy-to-adjust depth settings
- 2 springs available
- 3-stage down pressure: quick adjustment
- 2 discs options: 18” or 20” diameter
- 3” x 16” depth control wheelo
- 7º disc angle
- Rugged quenched steel construction
- Greasable, carbon steel hub with tapered bearings
Manuals
- Aulari disc bearing assembly leaflet - Torquing procedure for the bearing.pdf
- Aulari disc part manual - AULARI coulters parts manual V2-BI.pdf
ALR2304AM

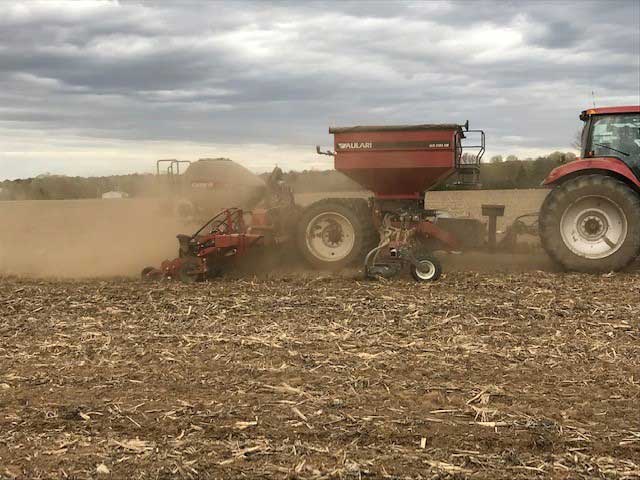

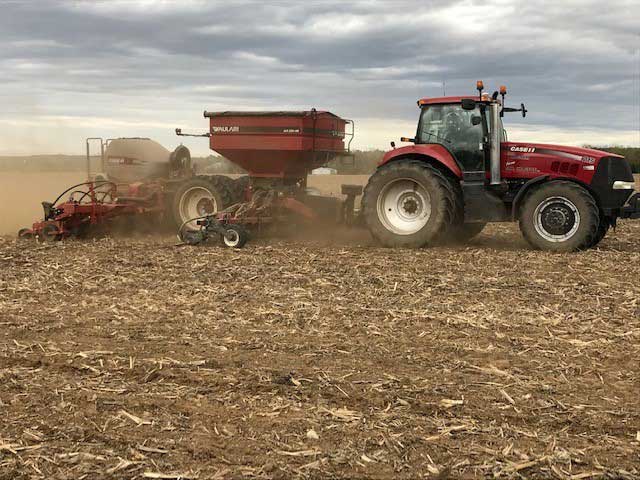

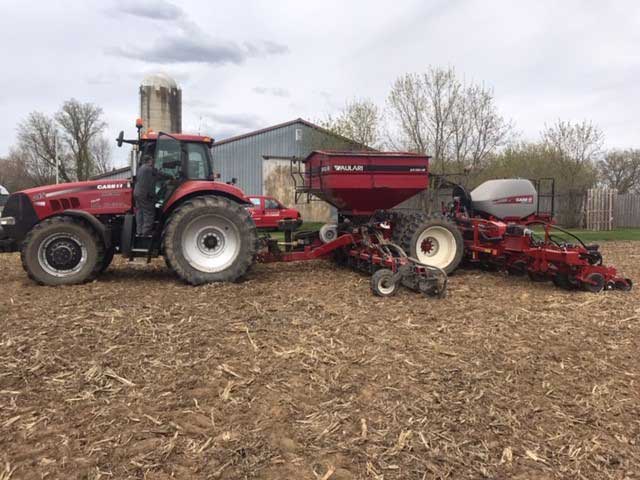

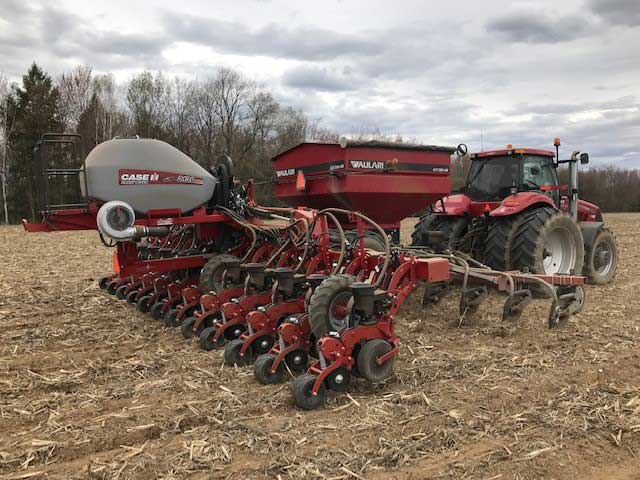

The ALR2304AM pneumatic applicator is an ALL IN ONE machine very versatile with high capacity. It can be equipped with a front tool bar for fertilizer application with disks. It can be combined with units for Zone-Till, an air-drill, an 8 or 12 row planter and boom spreader of 18 m (60’).
- Maximum capacity : 7.5 tons (16 500 lbs)
- Volume: 7000 liter (247 cubeic feet)
- Transport width4.88 m (16 feet)
Options :
- Section control
- Scale
Manuals
- ALR2304AM - Parts manual - Parts manual (R0).pdf
- Operator manual ALR2304AM-V1-FR-2014-02.pdf
- Operator manual ALR2304AM-V1-EN-2015-04.pdf
