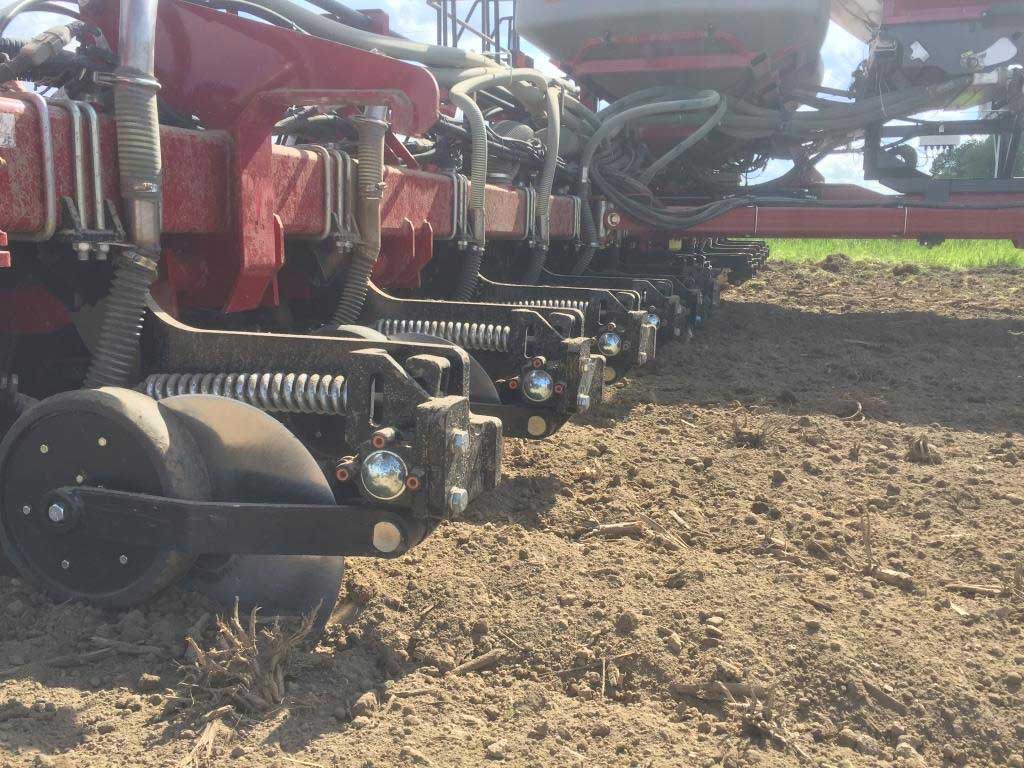

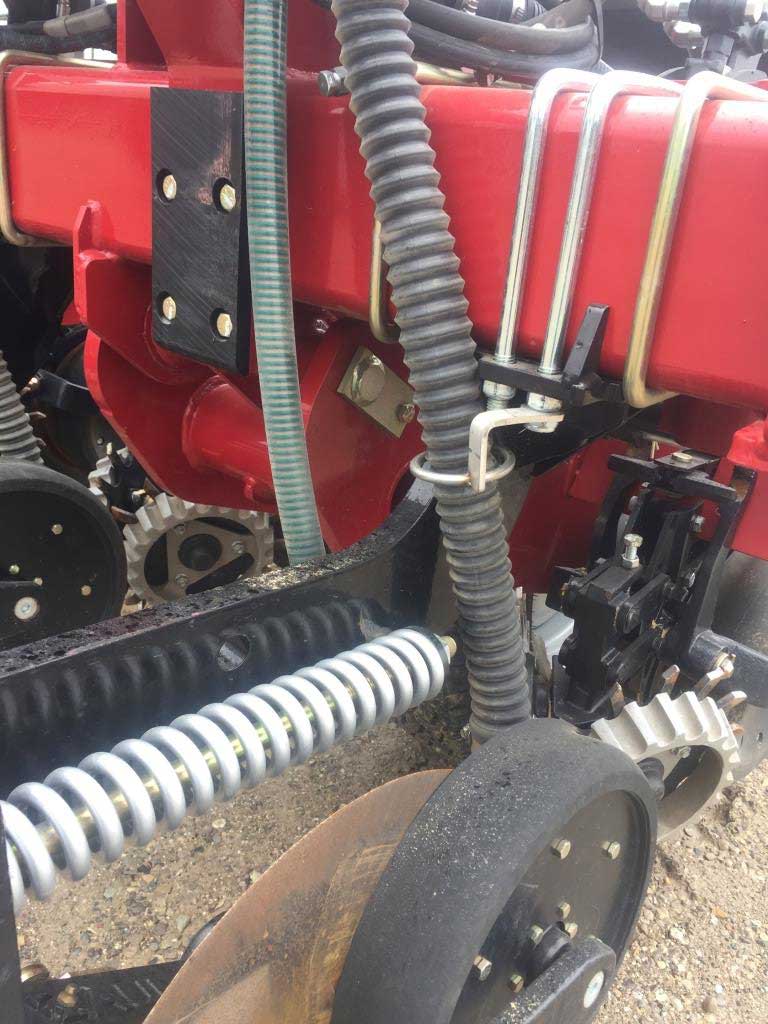

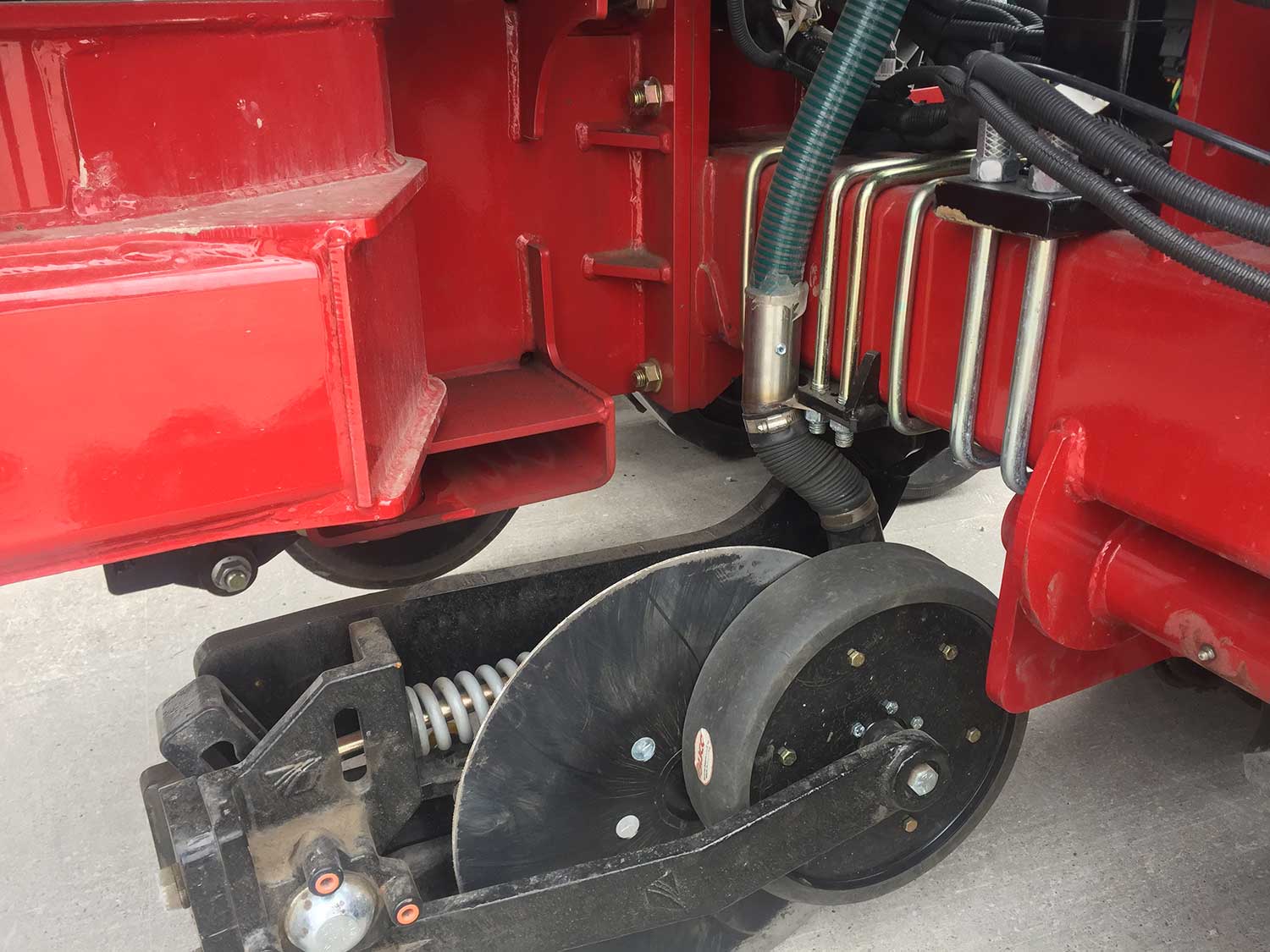

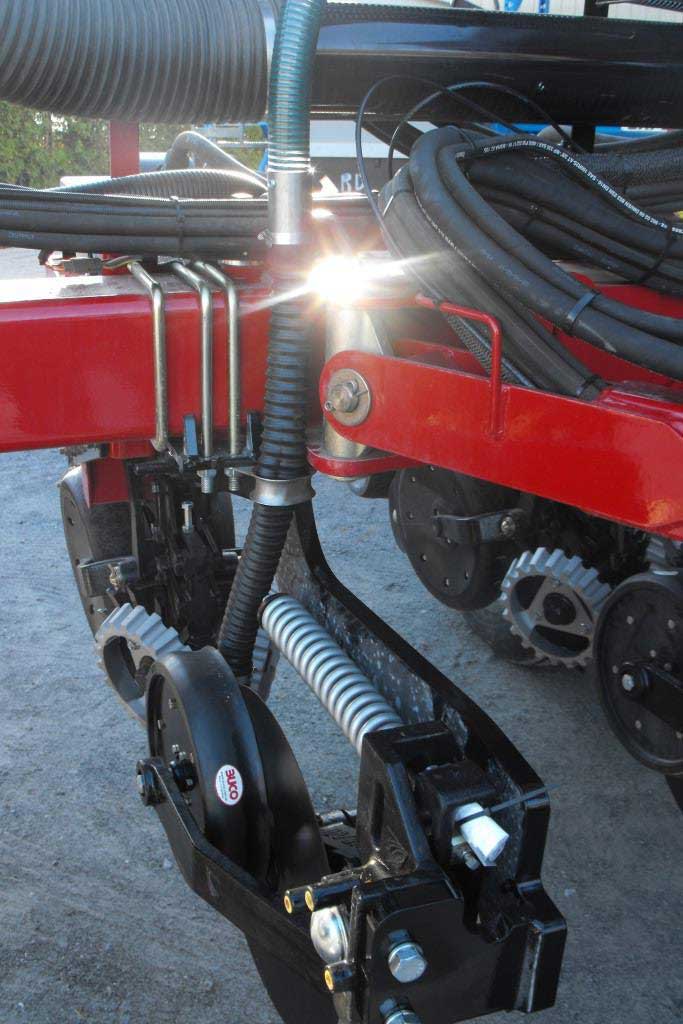

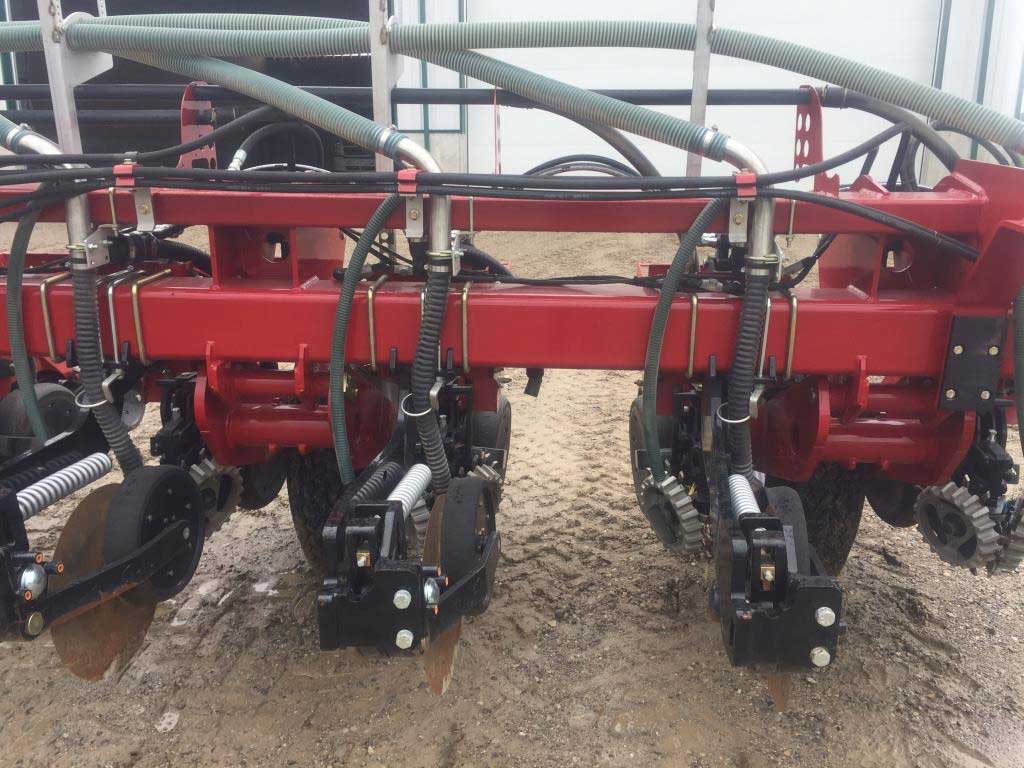

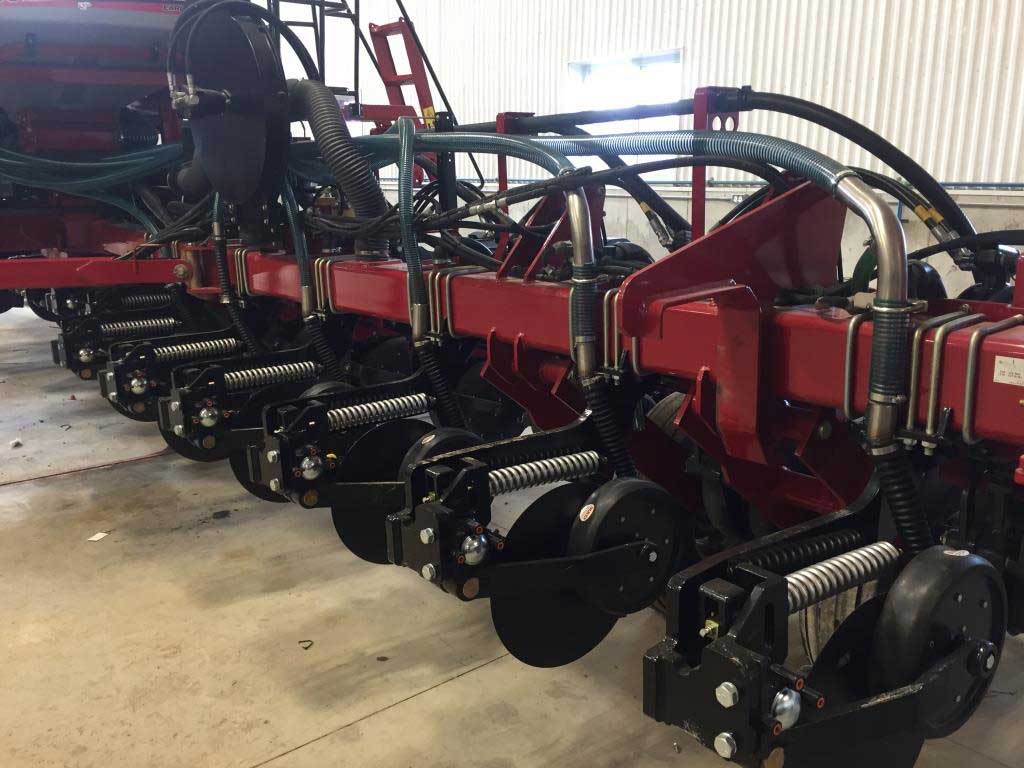

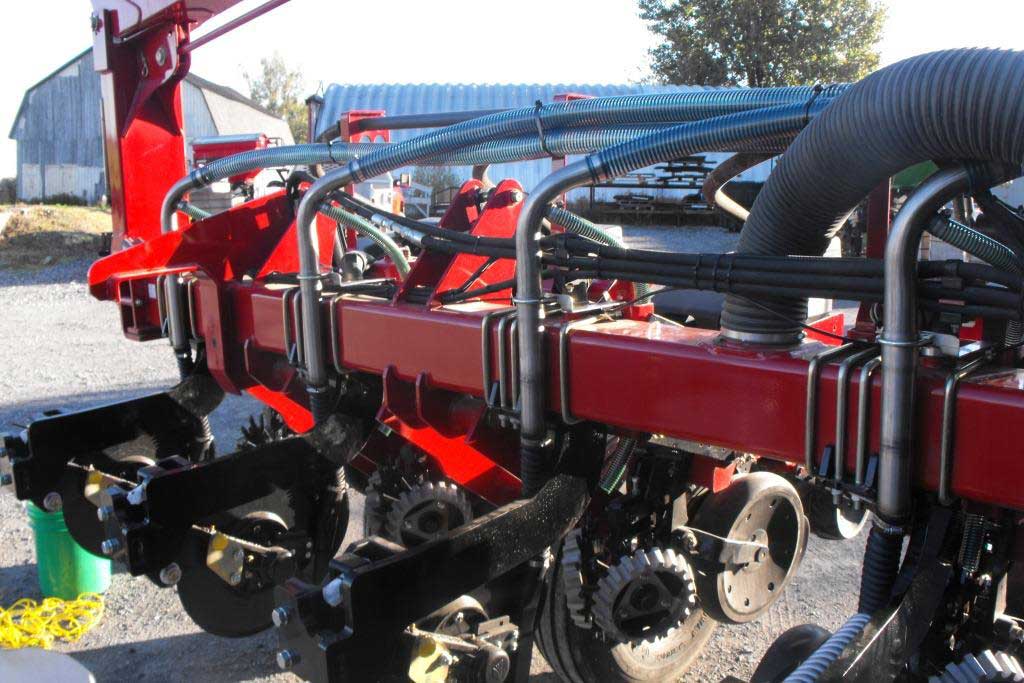

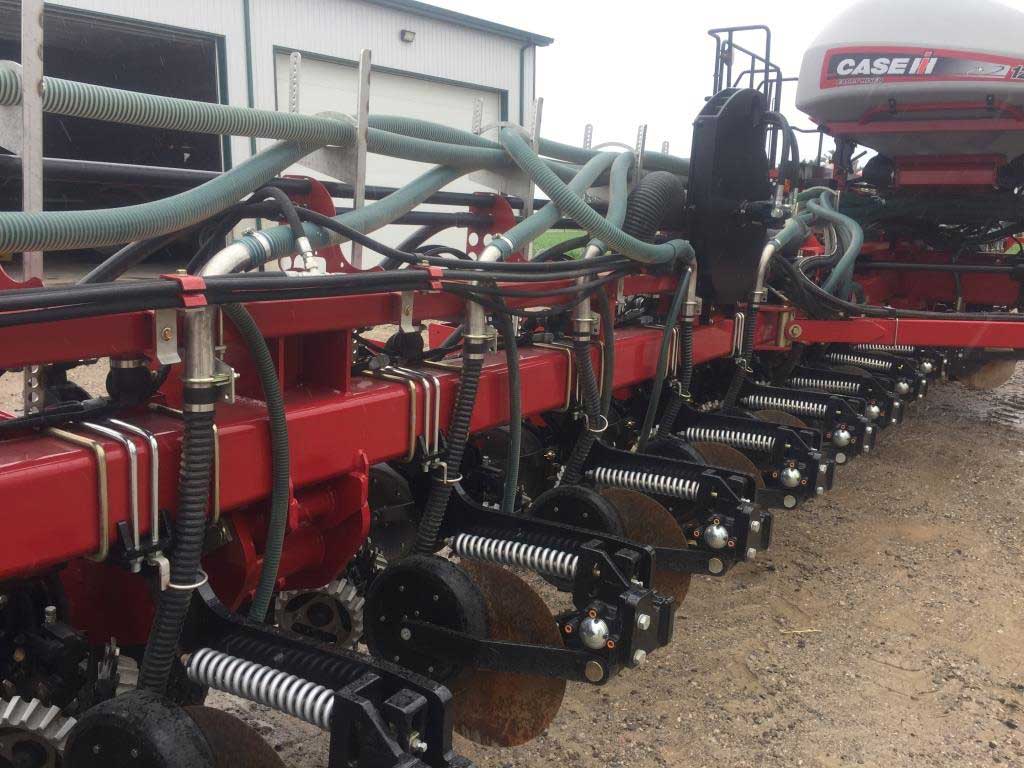

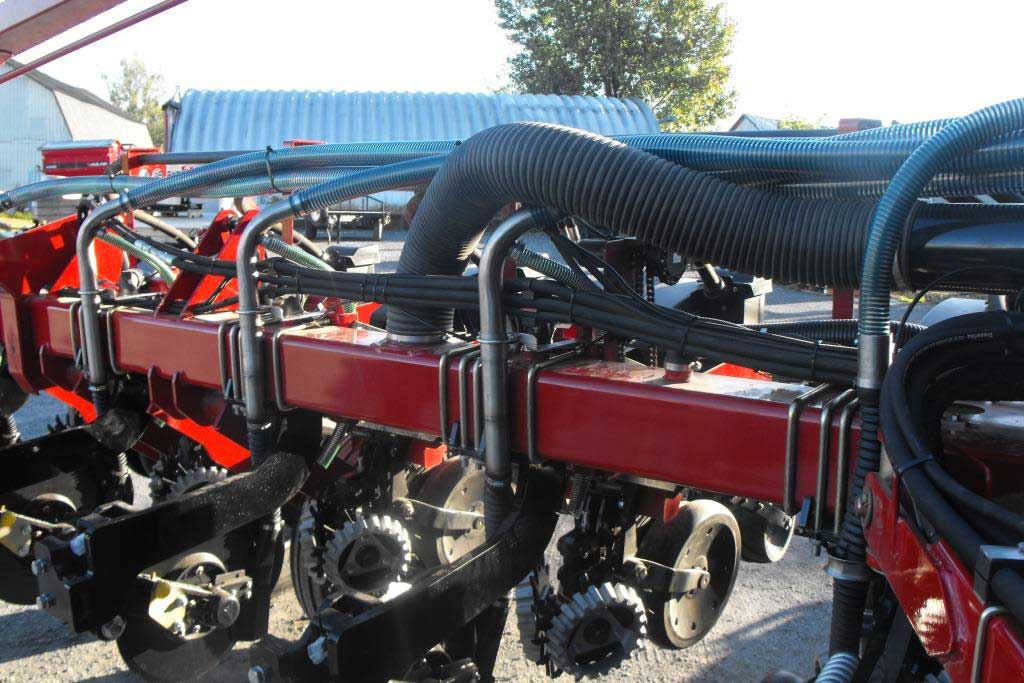

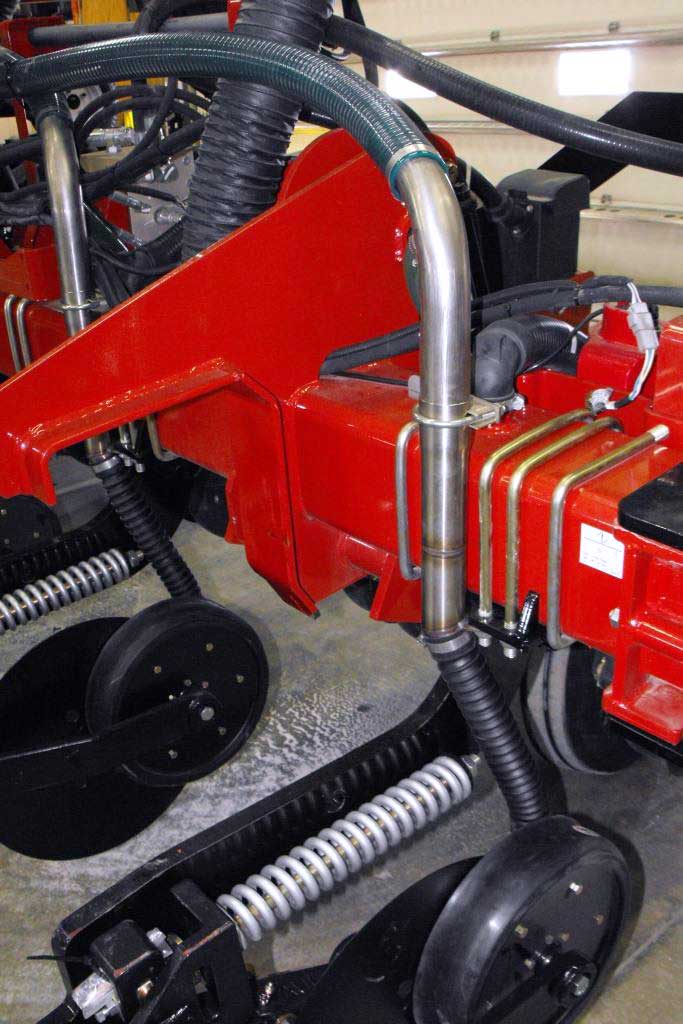

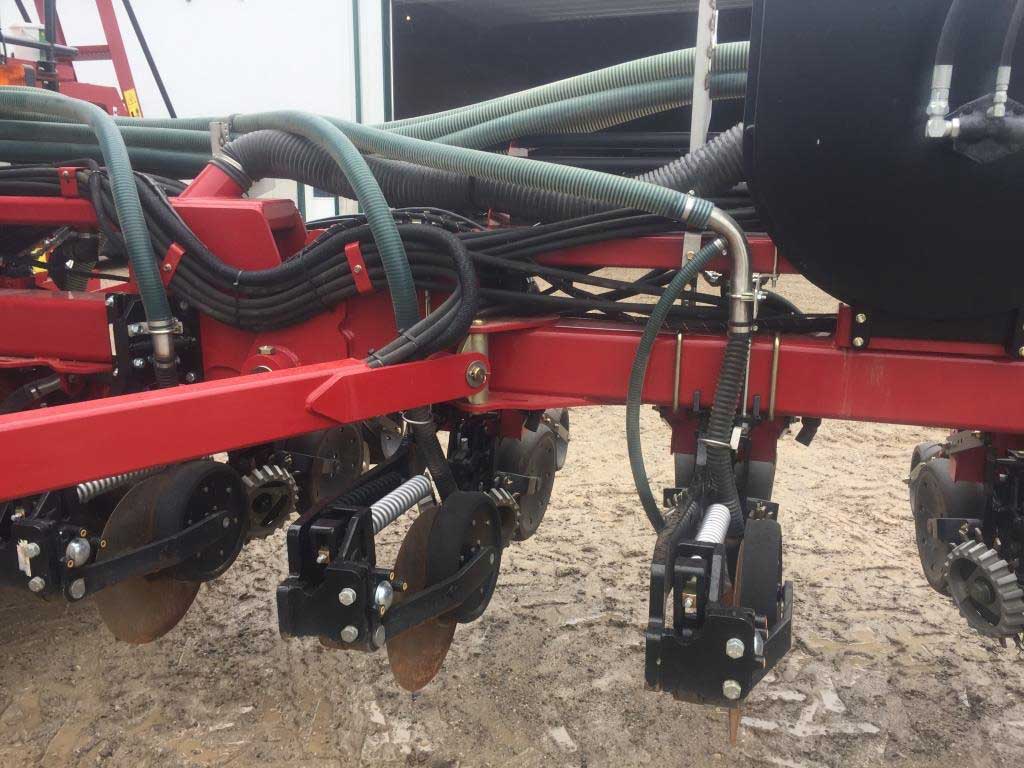

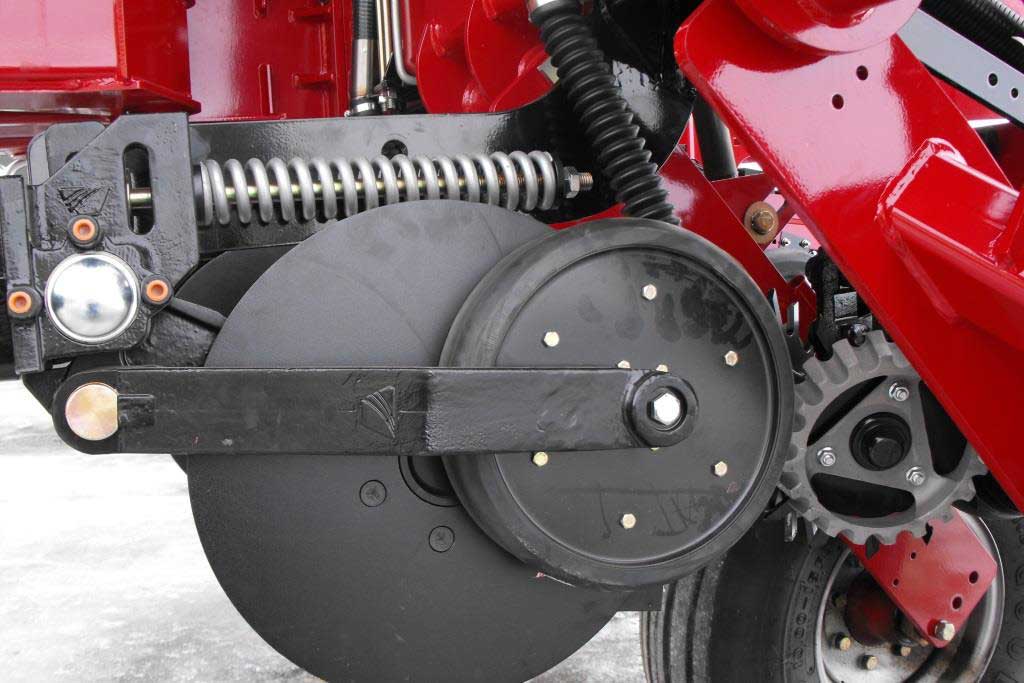

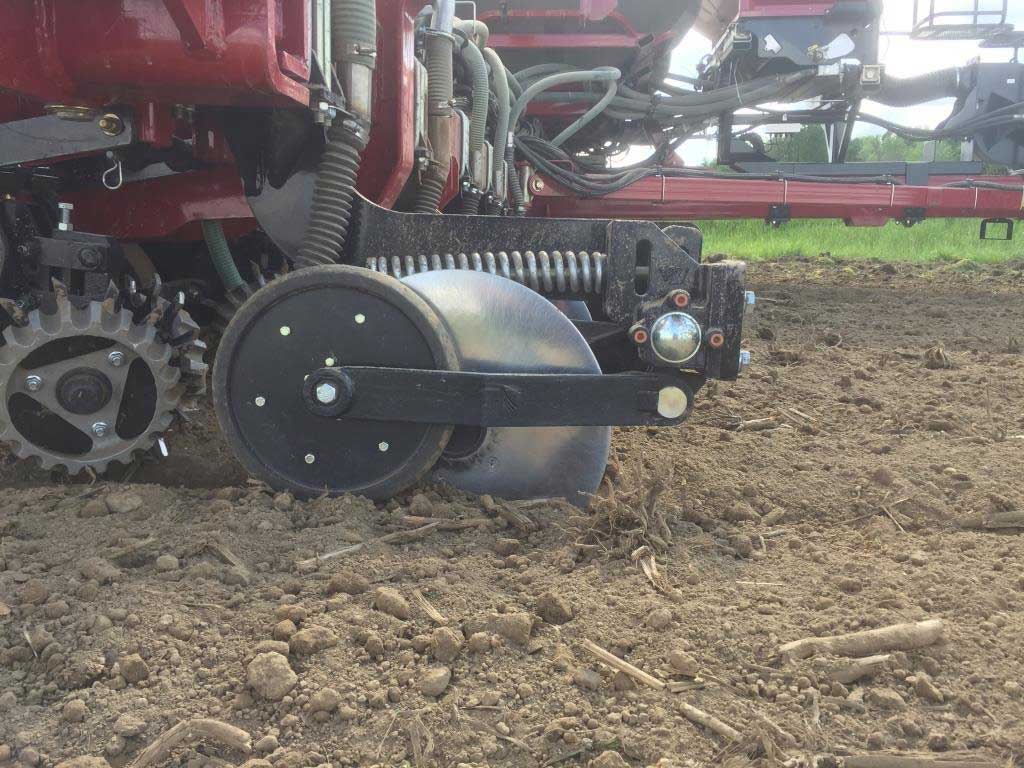

ALR0100

Symmetric components: you no longer have to keep separate parts for left and right coulters! Only the fertilizer boot and the mounting plate are LH or RH.

Easy disc replacement: simply remove the depth pin a drop the gauge wheel for full access to the disc!

Can be installed on most brands of planters and applicators.

Adapted to all tillage systems: from conventional to no-till.

• 5 easy-to-adjust depth settings
• 2 springs available
• 3-stage down pressure: quick adjustment
• 2 discs options: 18” or 20” diameter
• 3” x 16” depth control wheelo
• 7º disc angle
• Rugged quenched steel construction
• Greasable, carbon steel hub with tapered bearings


Manuals

Aulari disc bearing assembly leaflet - Torquing procedure for the bearing.pdf

CASE1255 Aulari Disk Installation (12RGS, 16RGS) - Installation instruction.PDF

Aulari disc part manual - AULARI coulters parts manual V2-BI.pdf

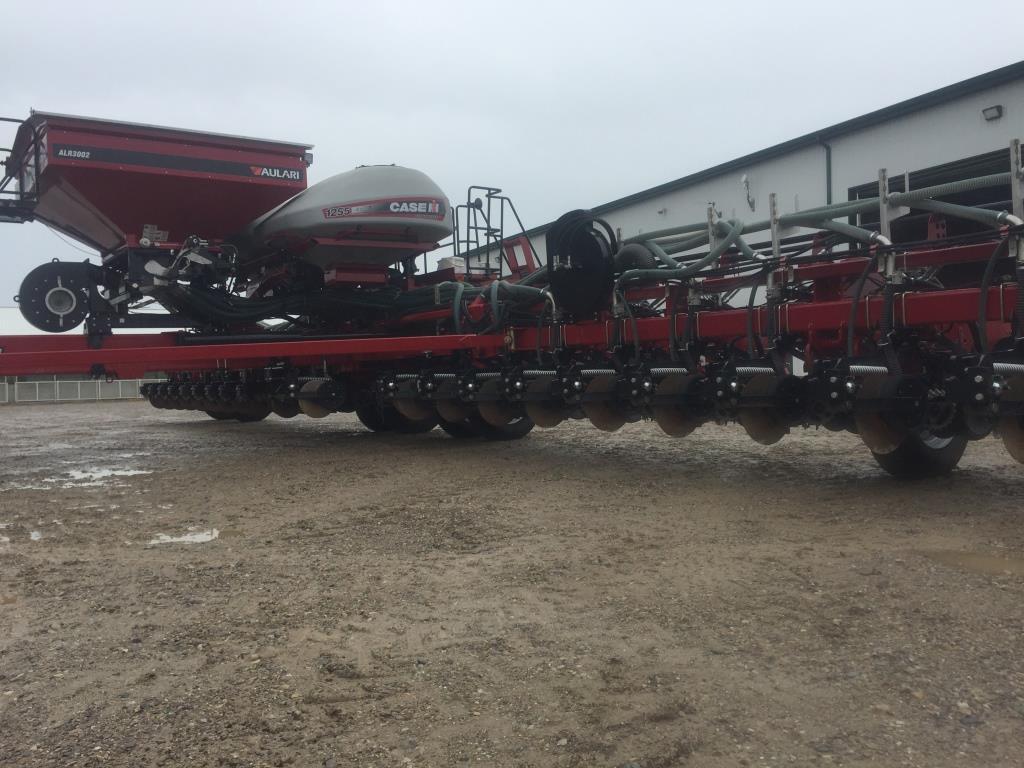

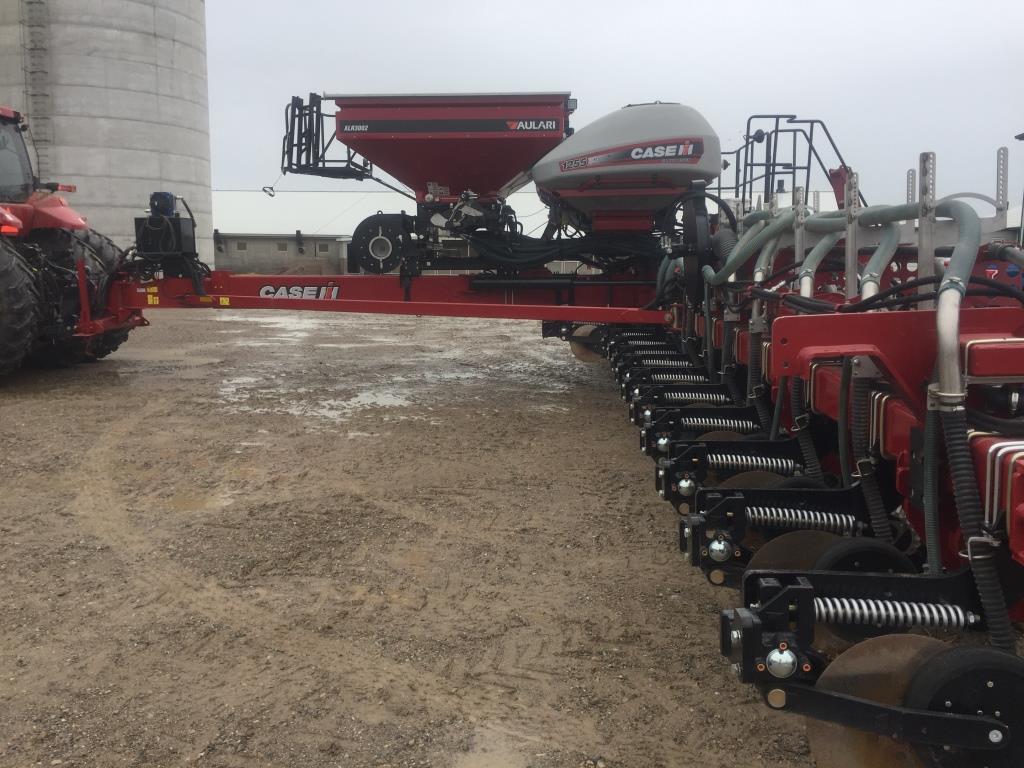

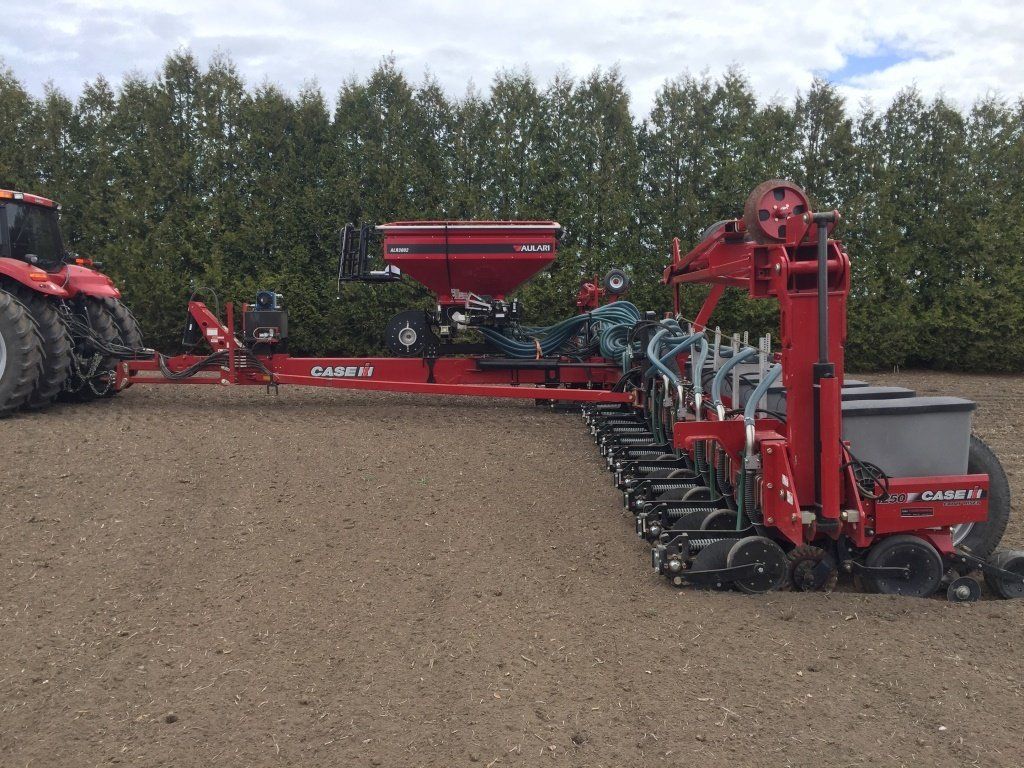

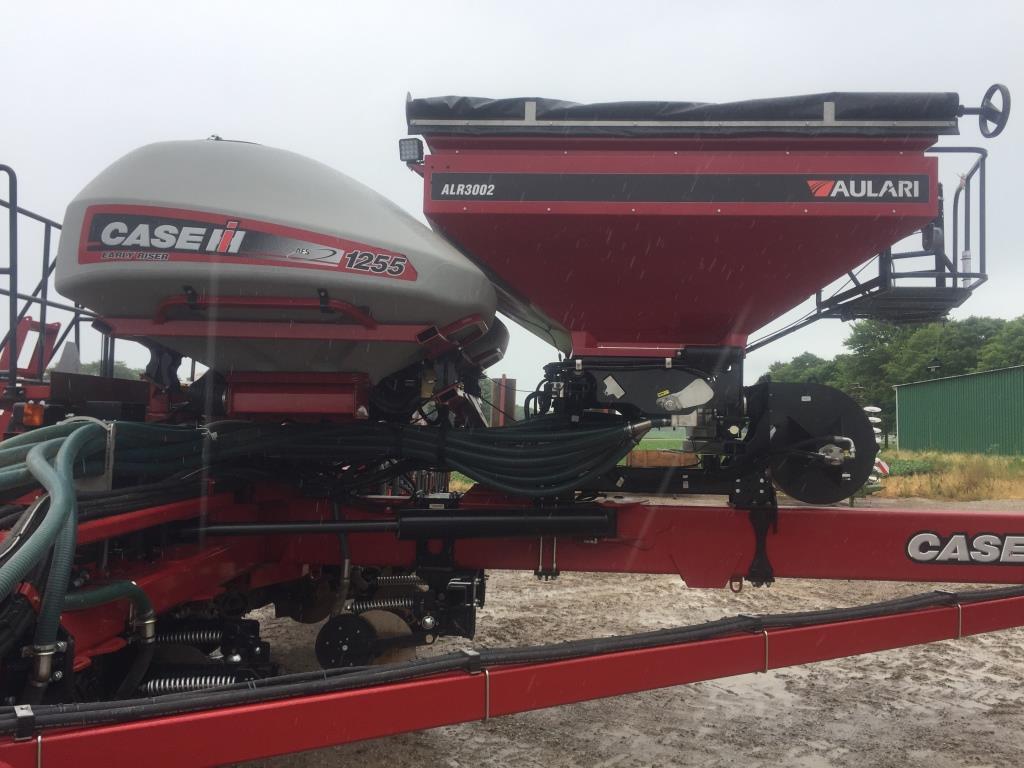

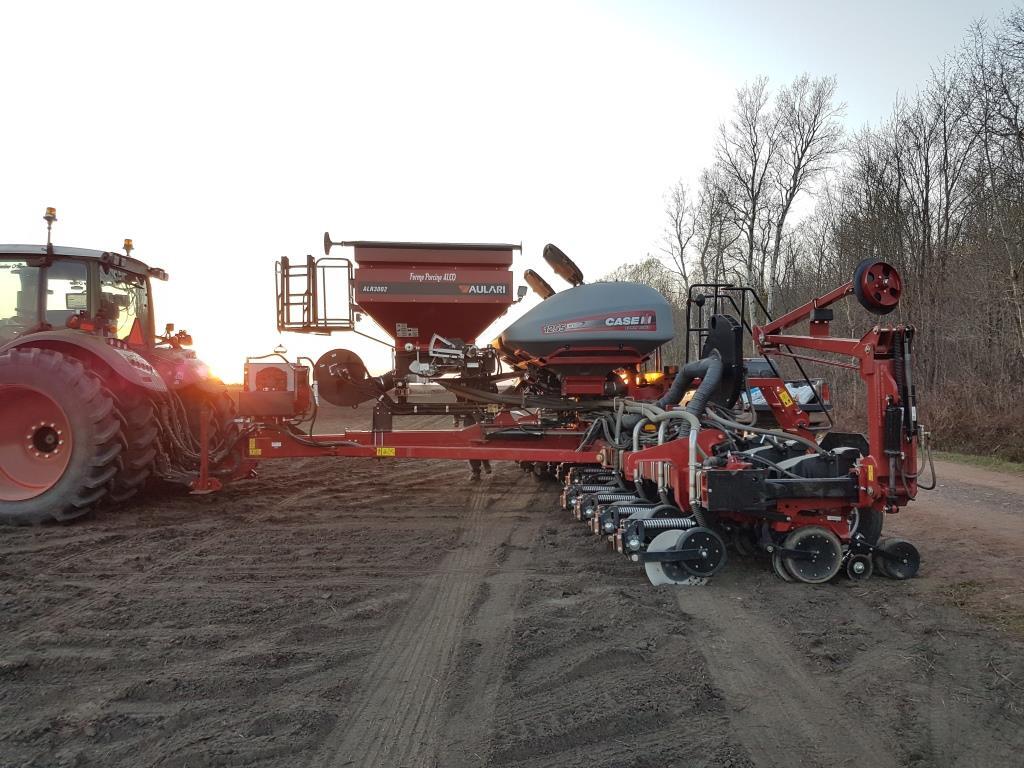

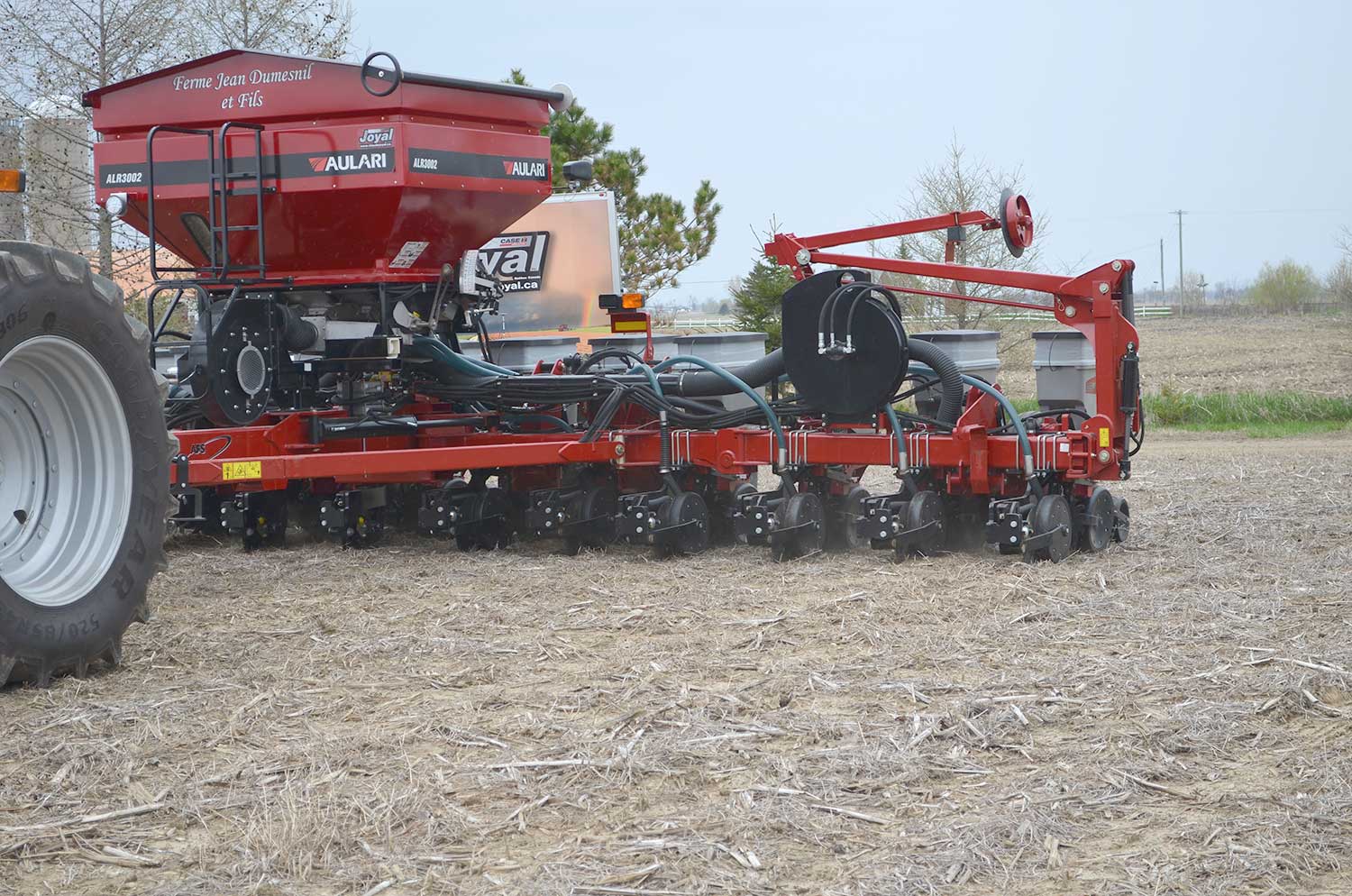

ALR3002

The ALR3002 pneumatic dry fertilizer or soybean seed applicator can be installed on 6, 8, 12, 16, 24, 32 or 36 row planters. Easier to back up then with a pulled behind cart and easier to do your head land too. You can always see your metering shaft

• Maximum capacity :6.5 tons (14 330 lbs)
• Volume : 6500 liter (230 cubic feet)
• Maximum application width: 27 m (90 feet)



Options:

• Section control
• Scale
• Transfert Auger

Manuals

Operator manual ALR3002-V2-EN-2014-10.pdf

Manual Operator ALR3002-V2-EN-2014-10.pdf
