ALR0170-2019

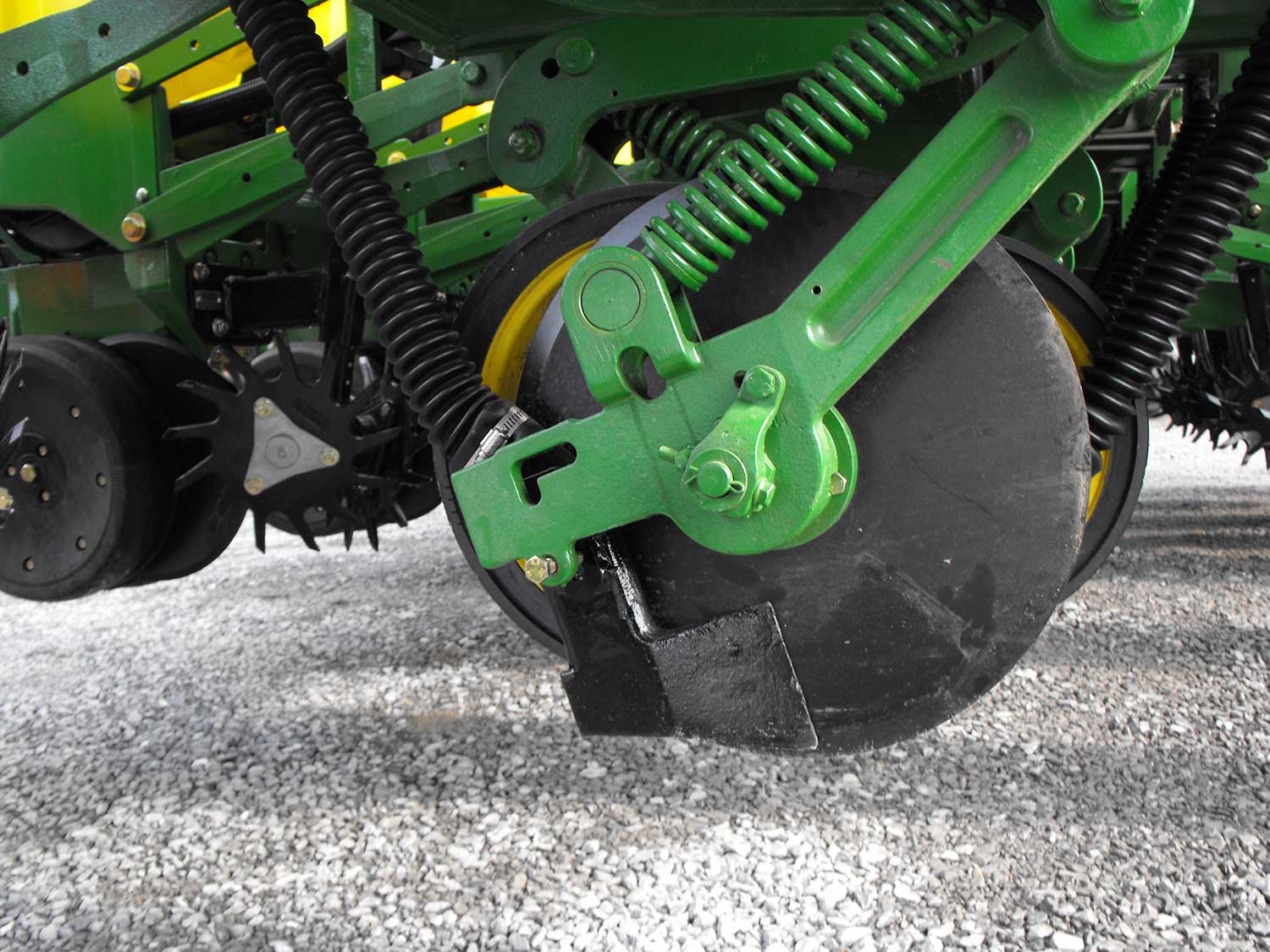

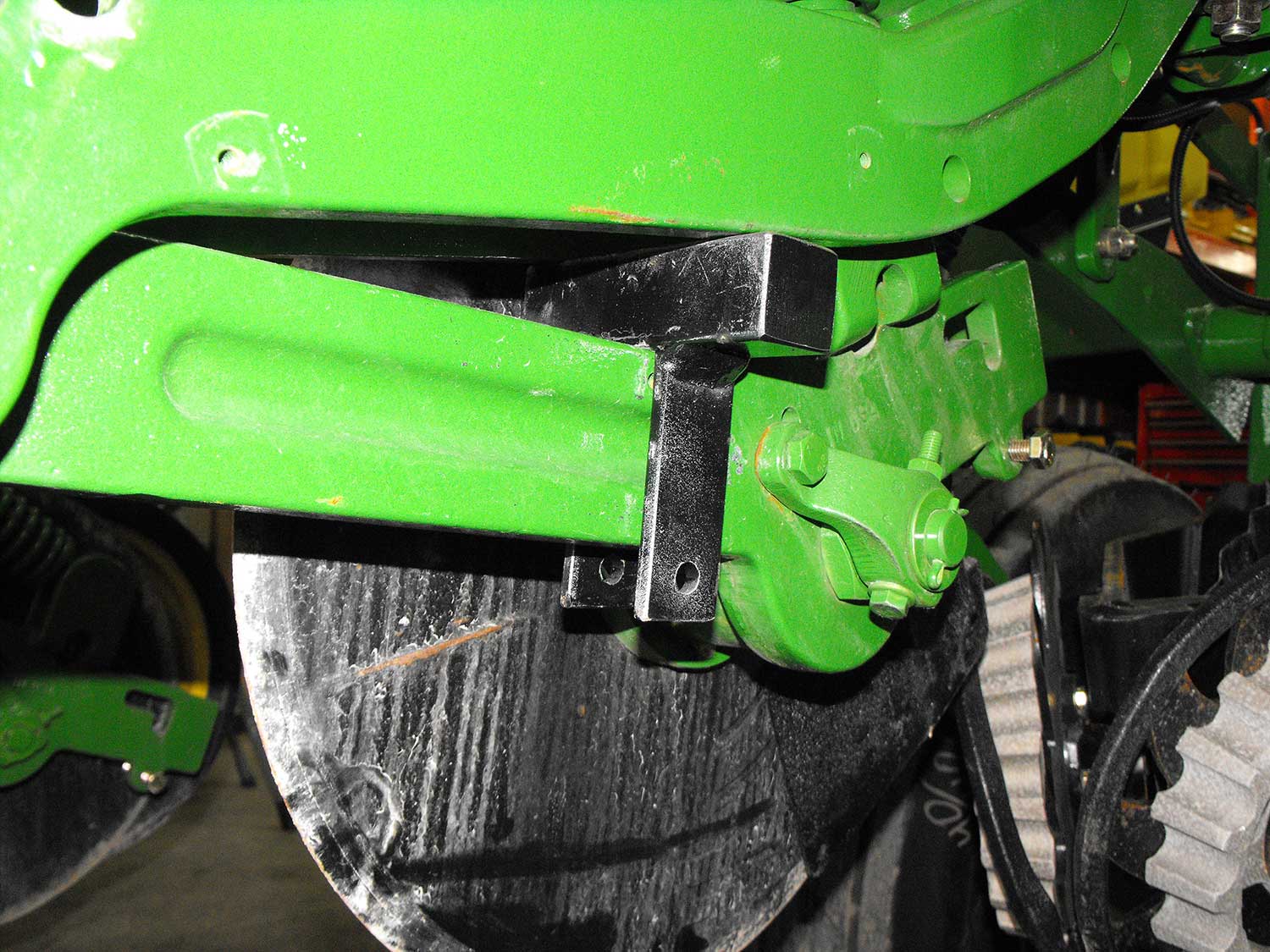

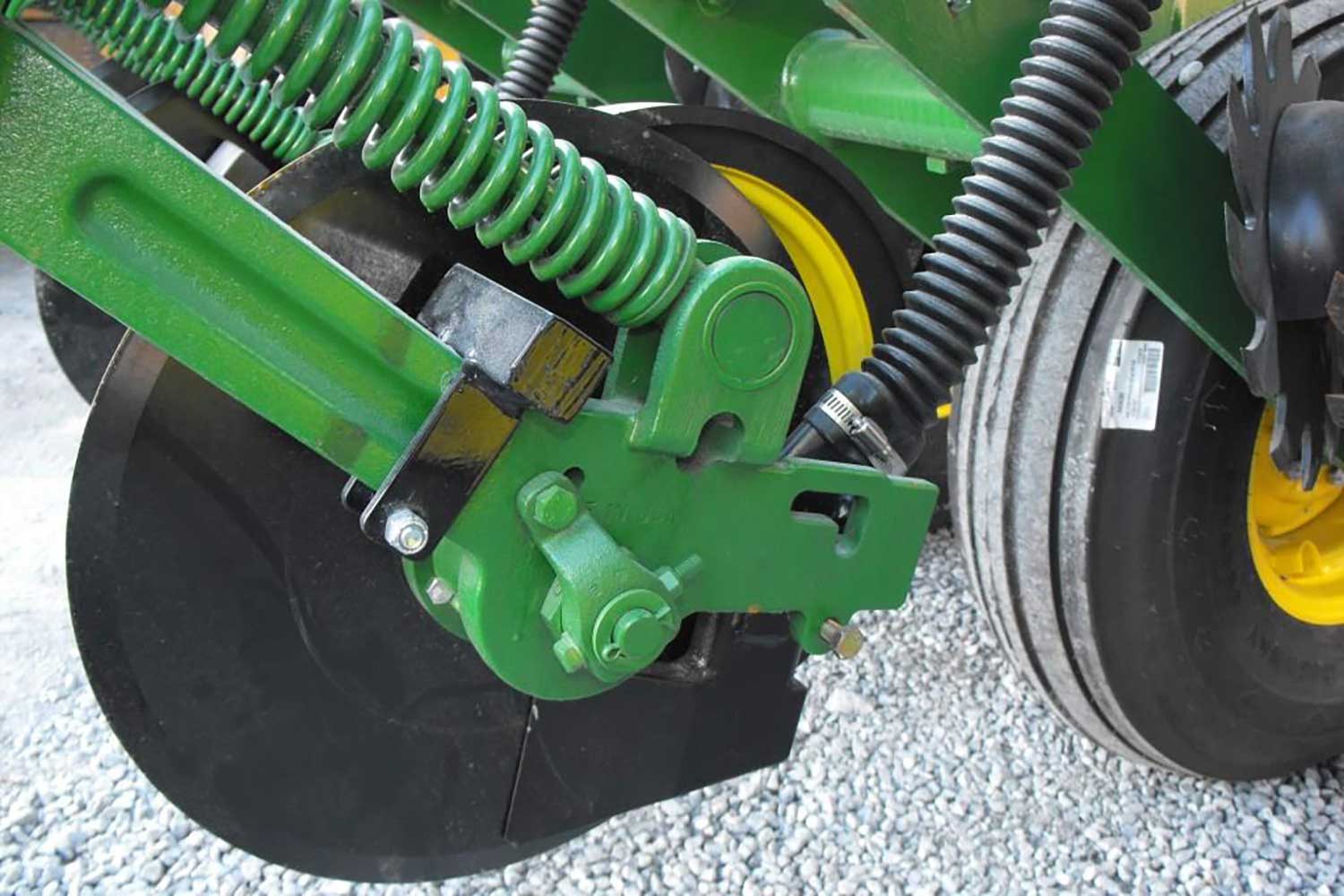

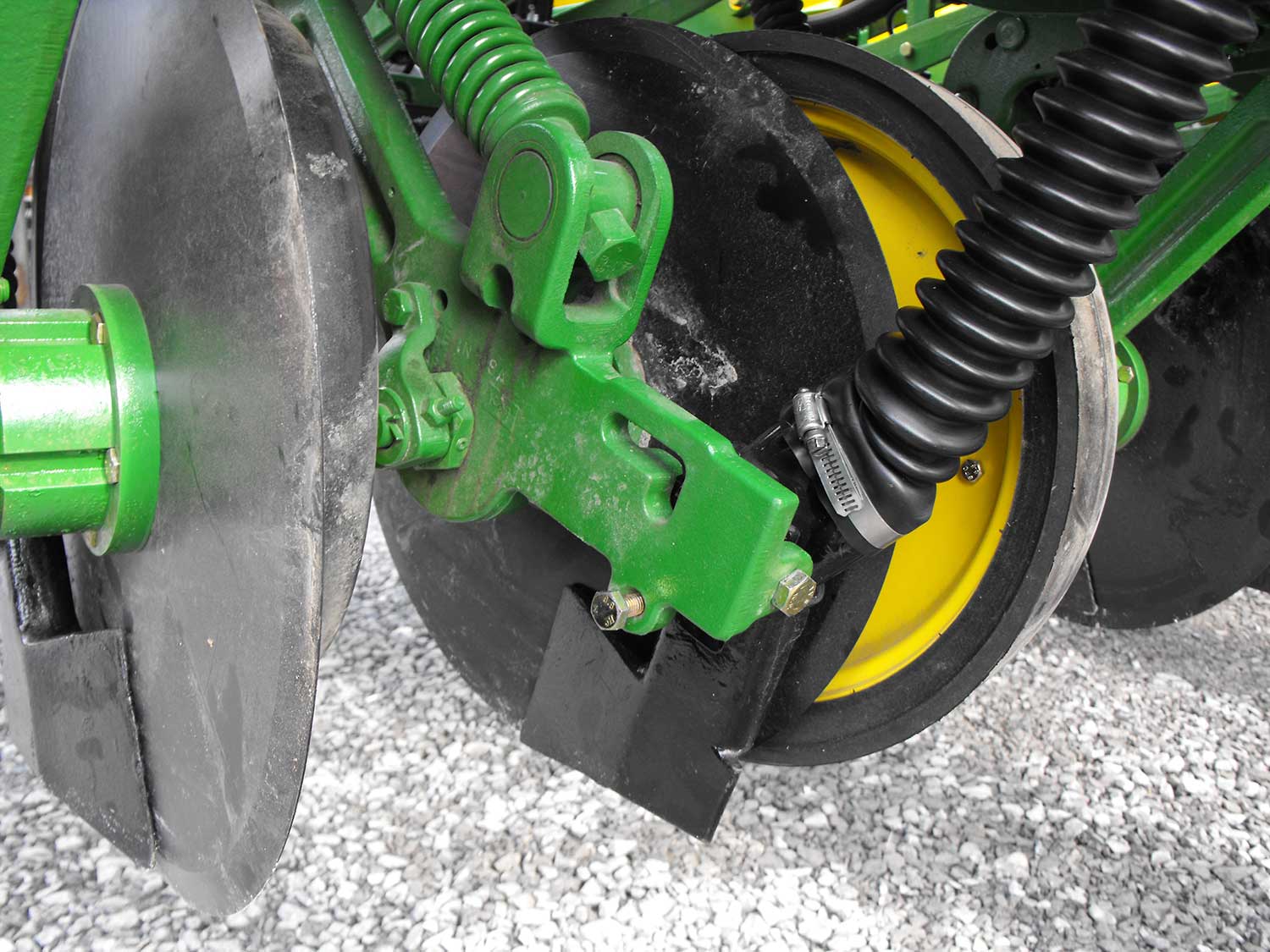

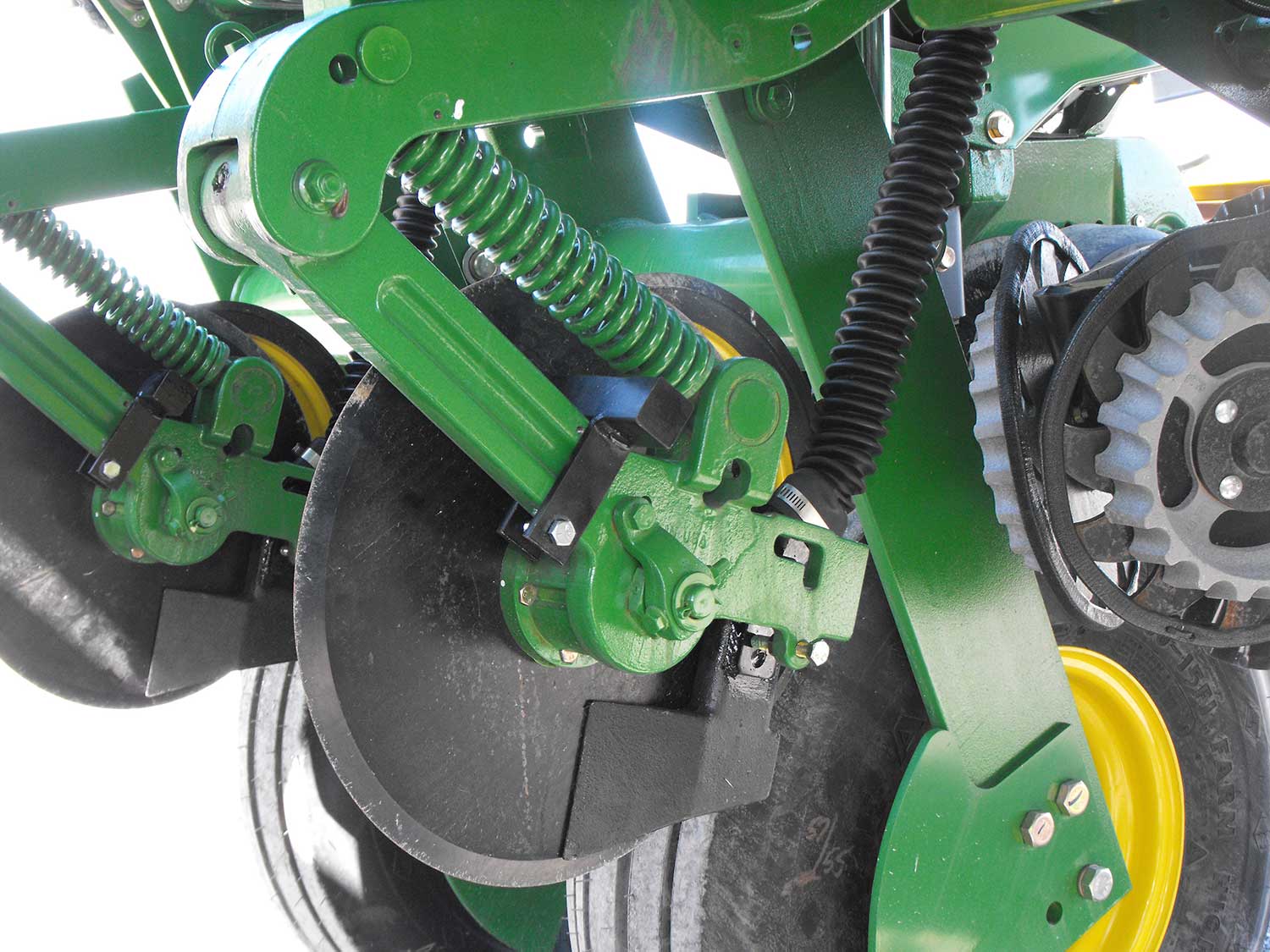

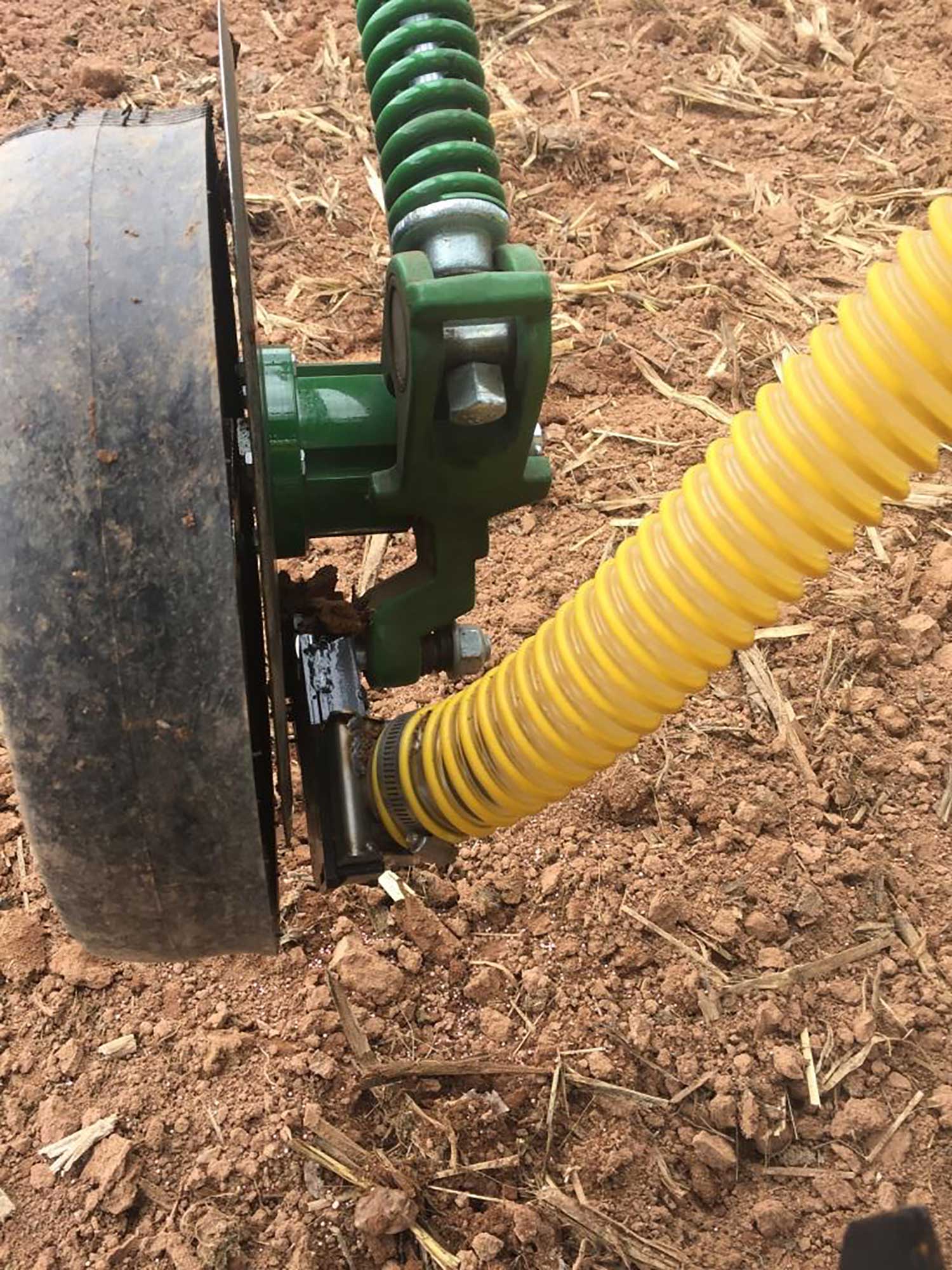

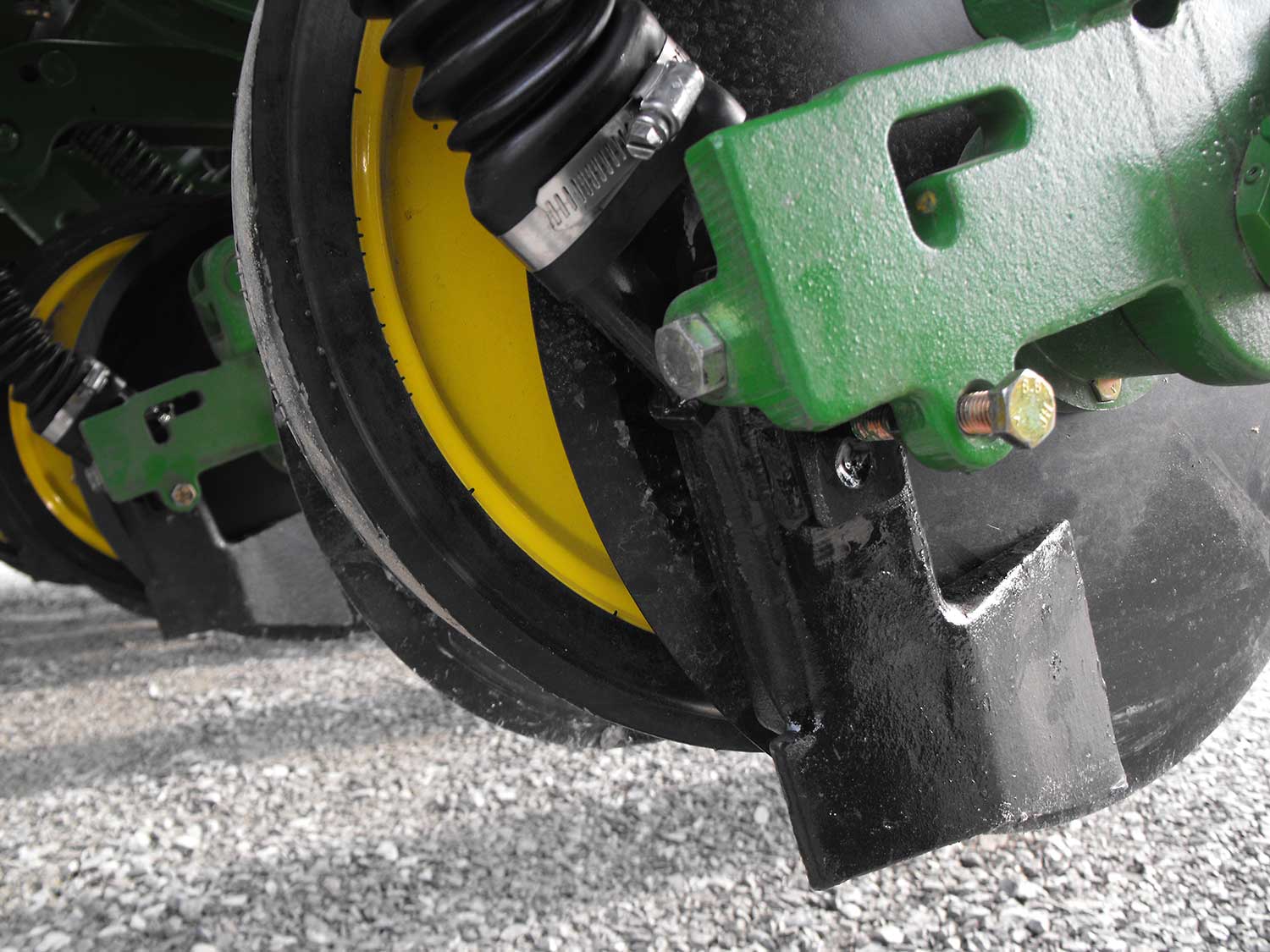

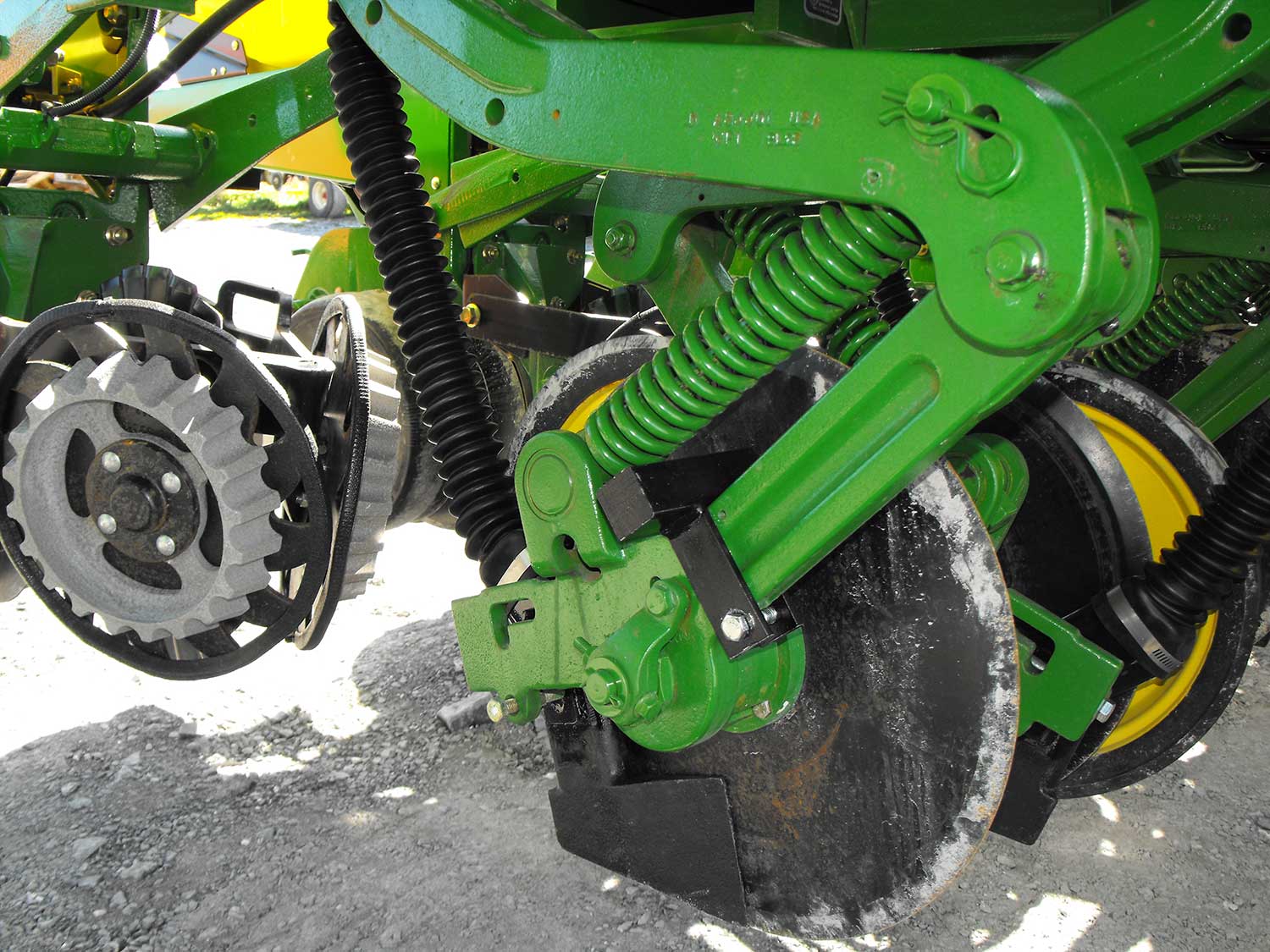

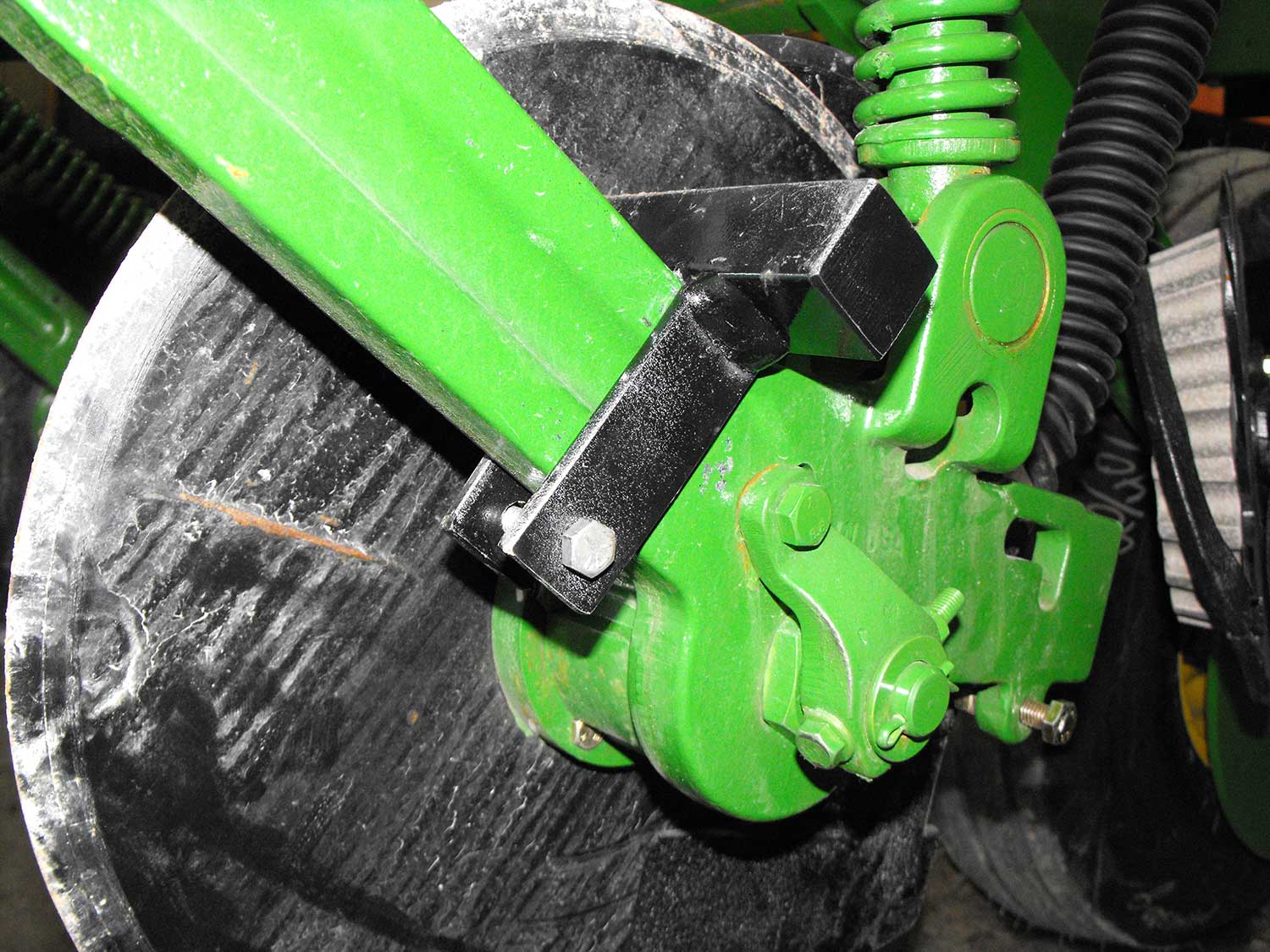

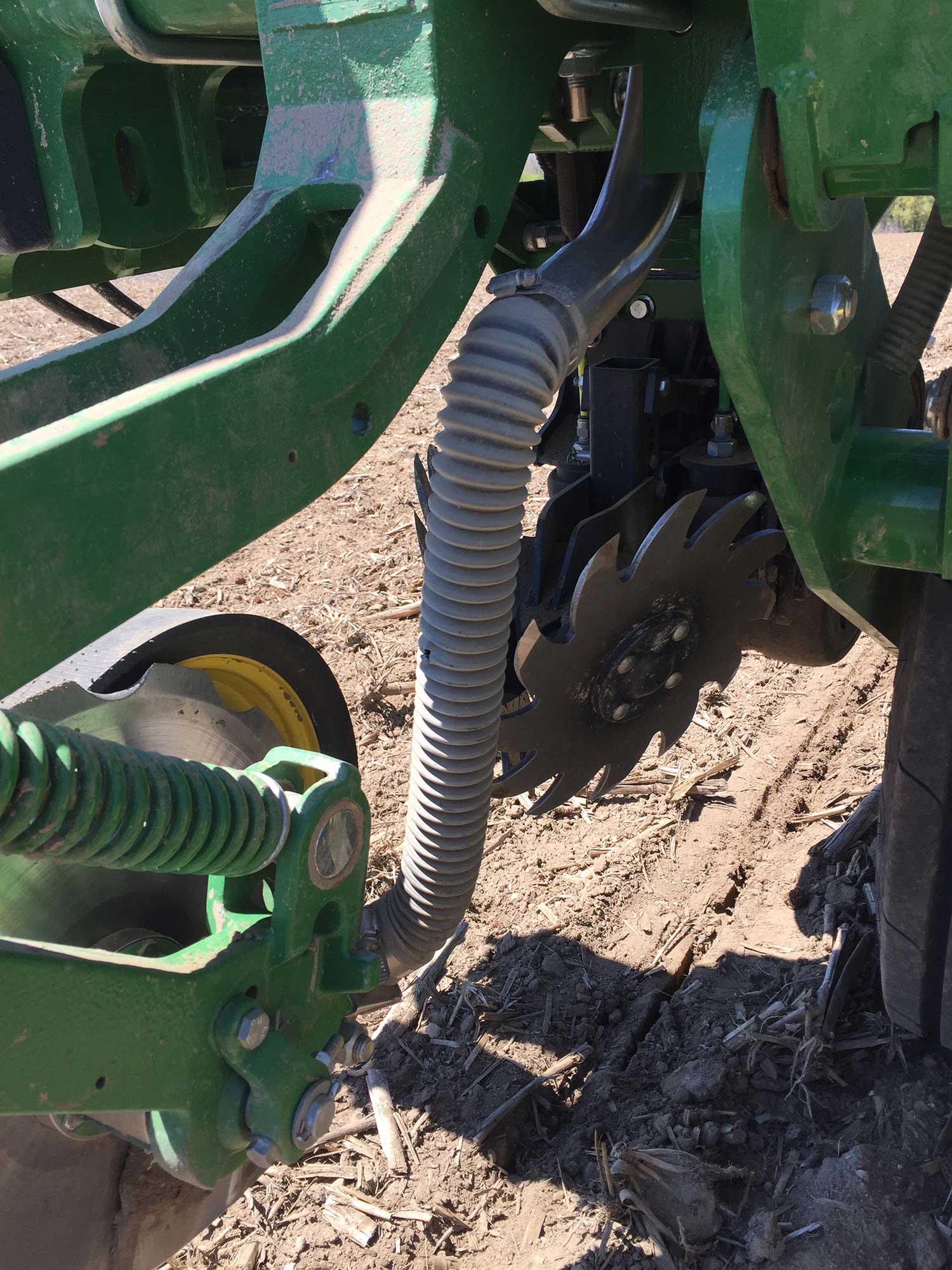

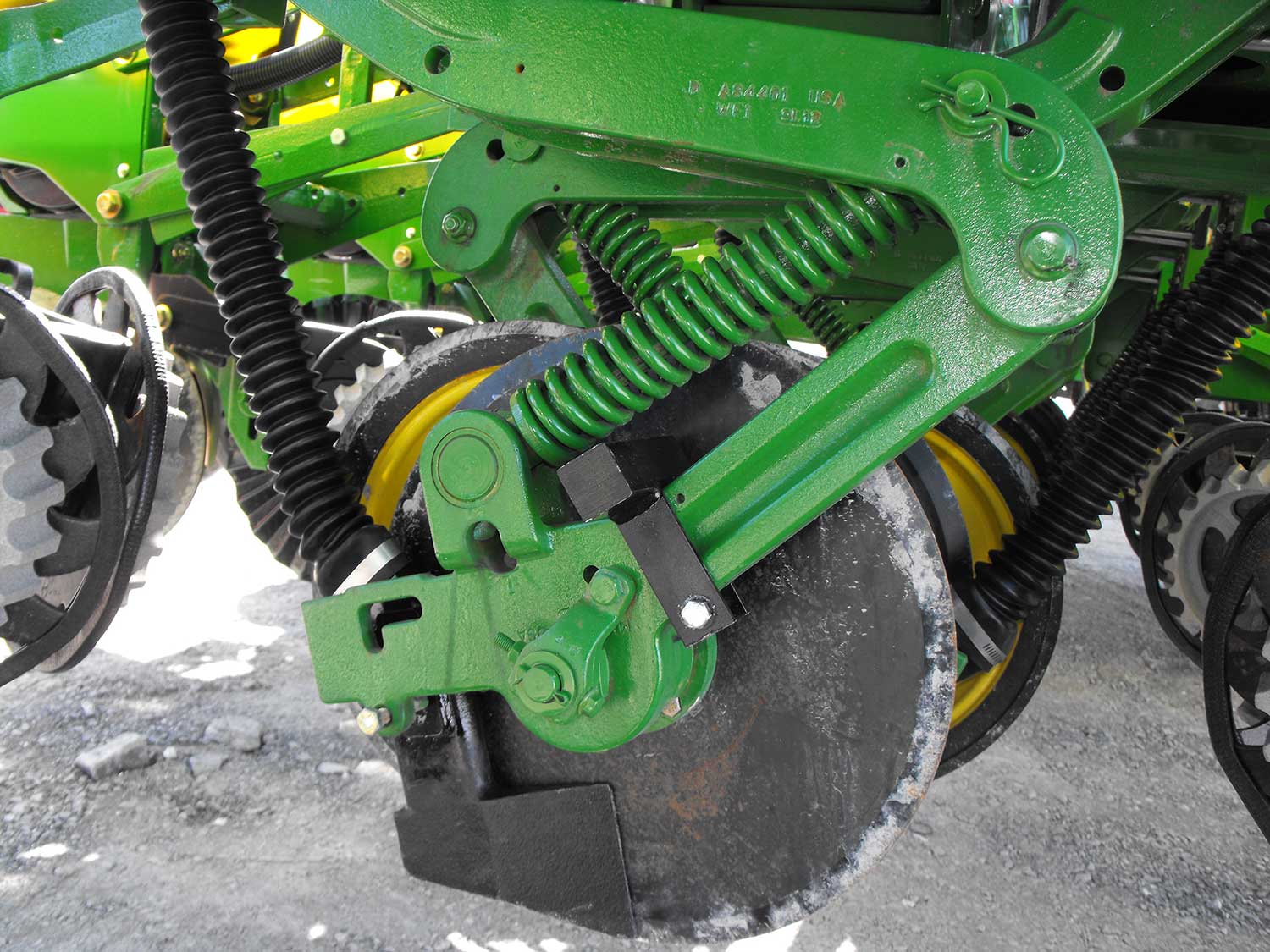

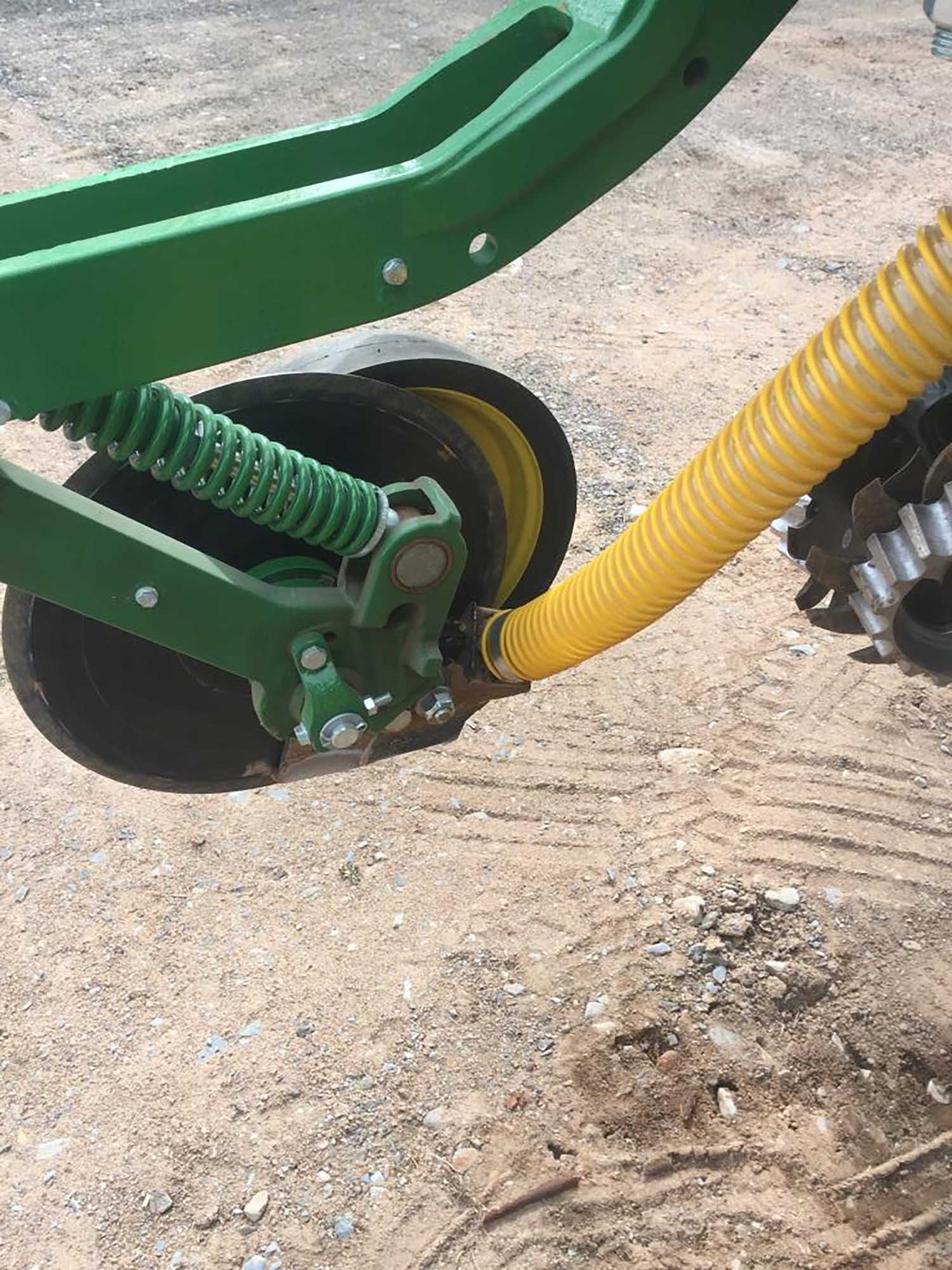

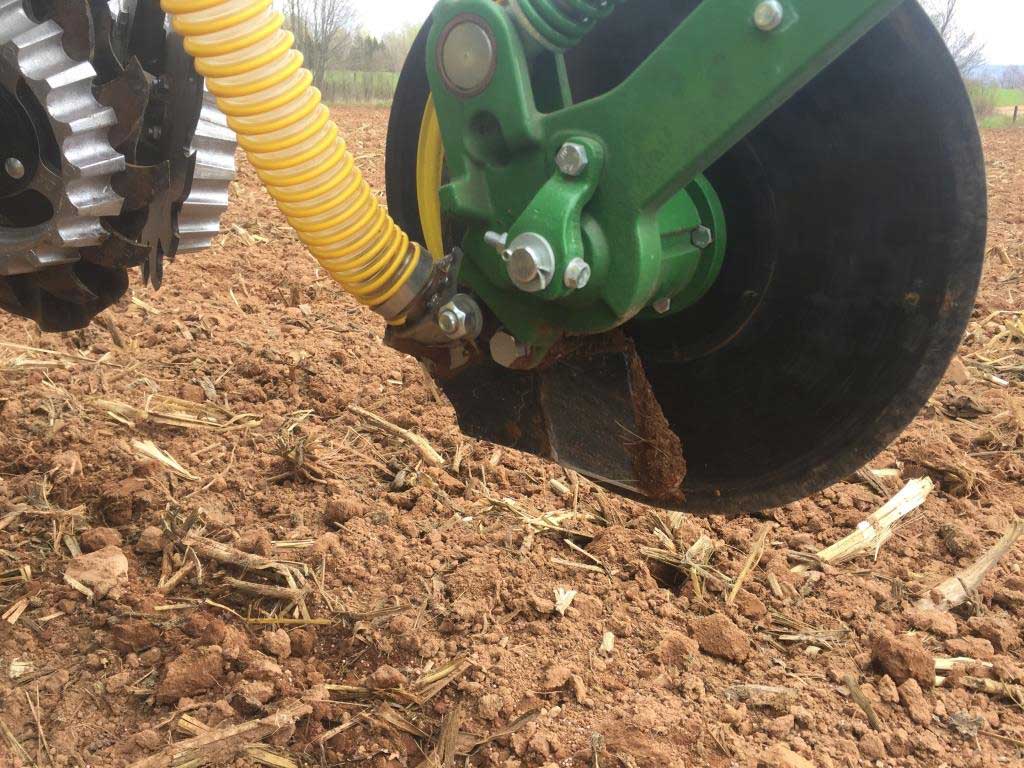

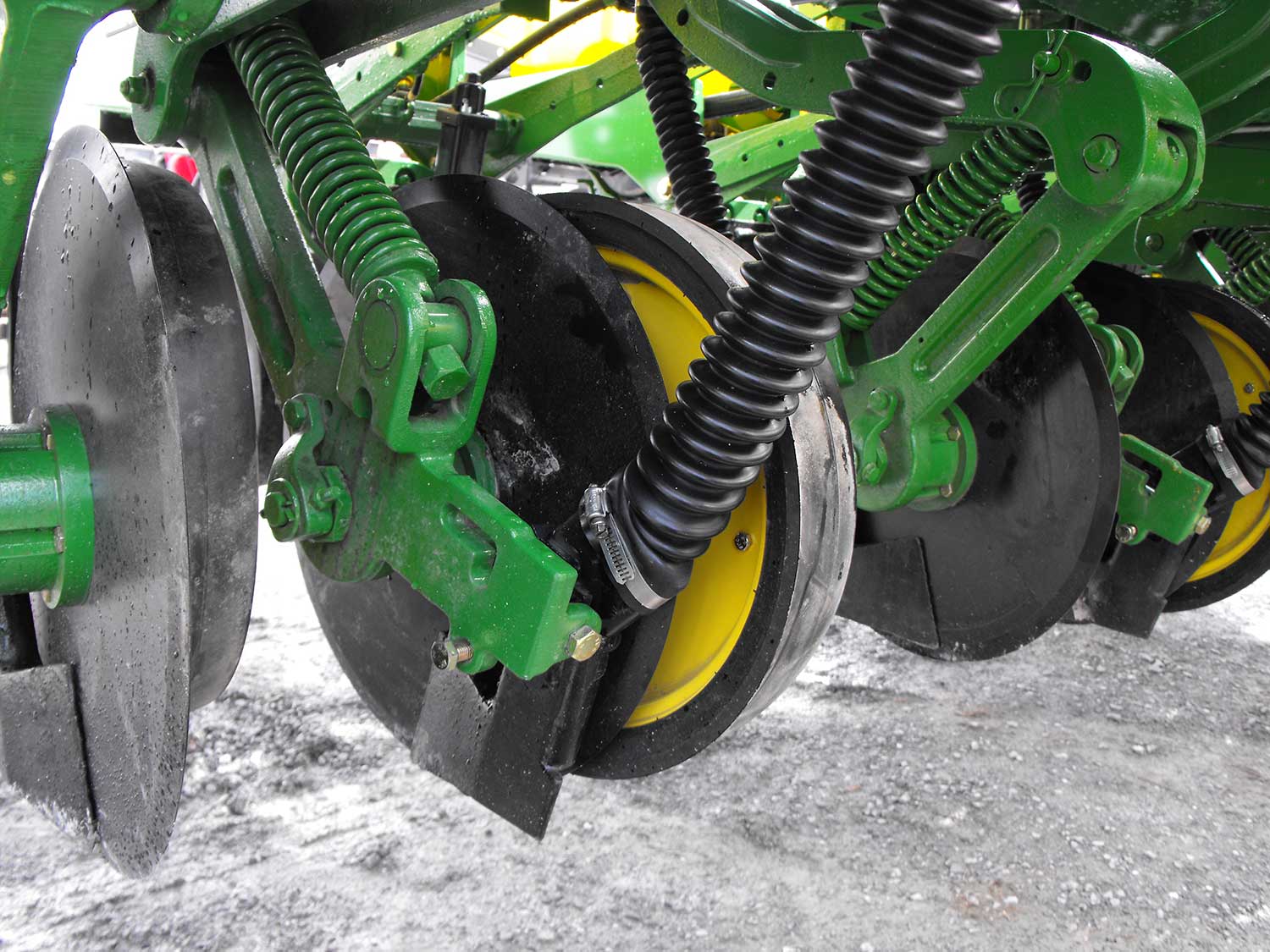

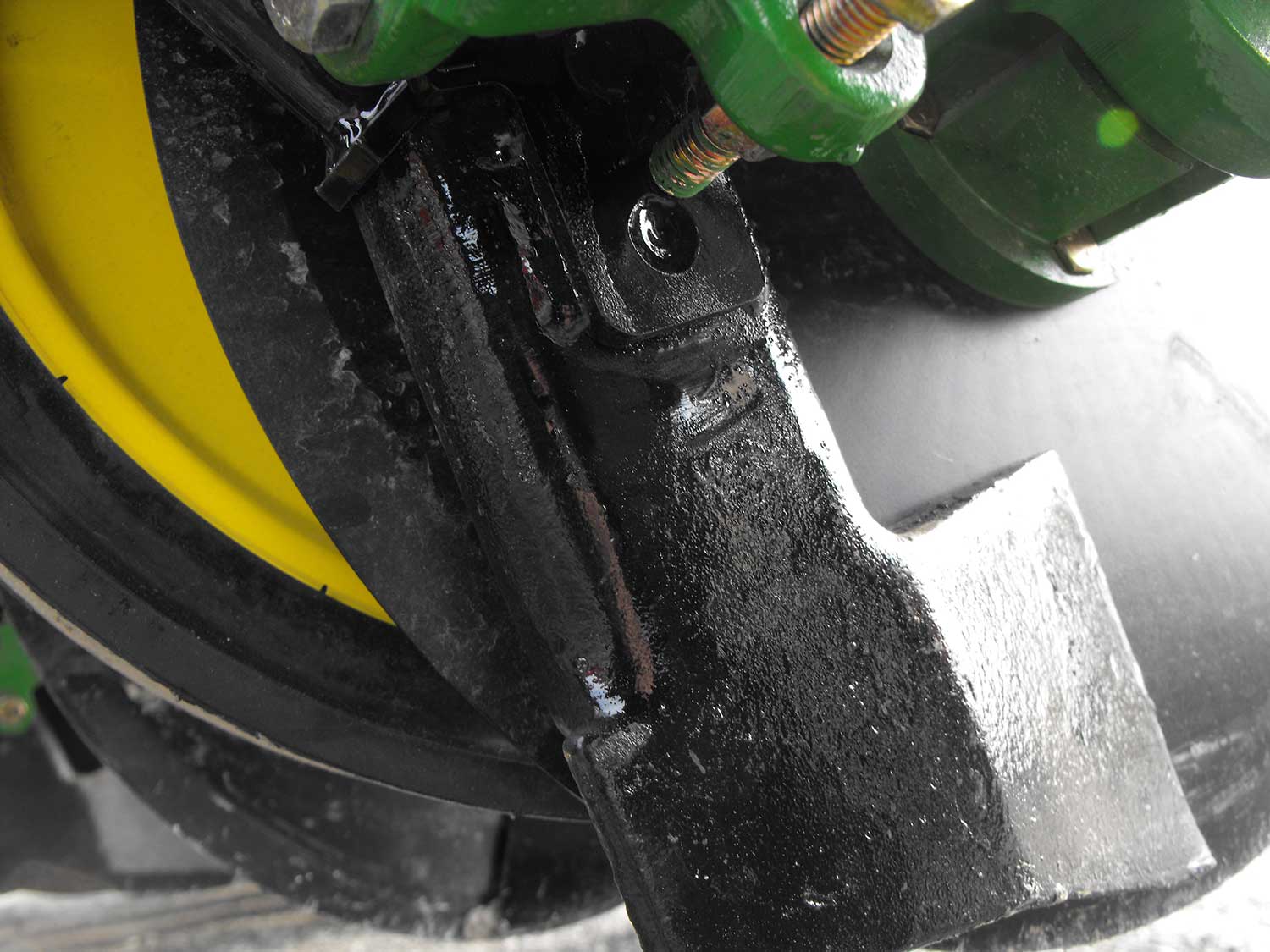

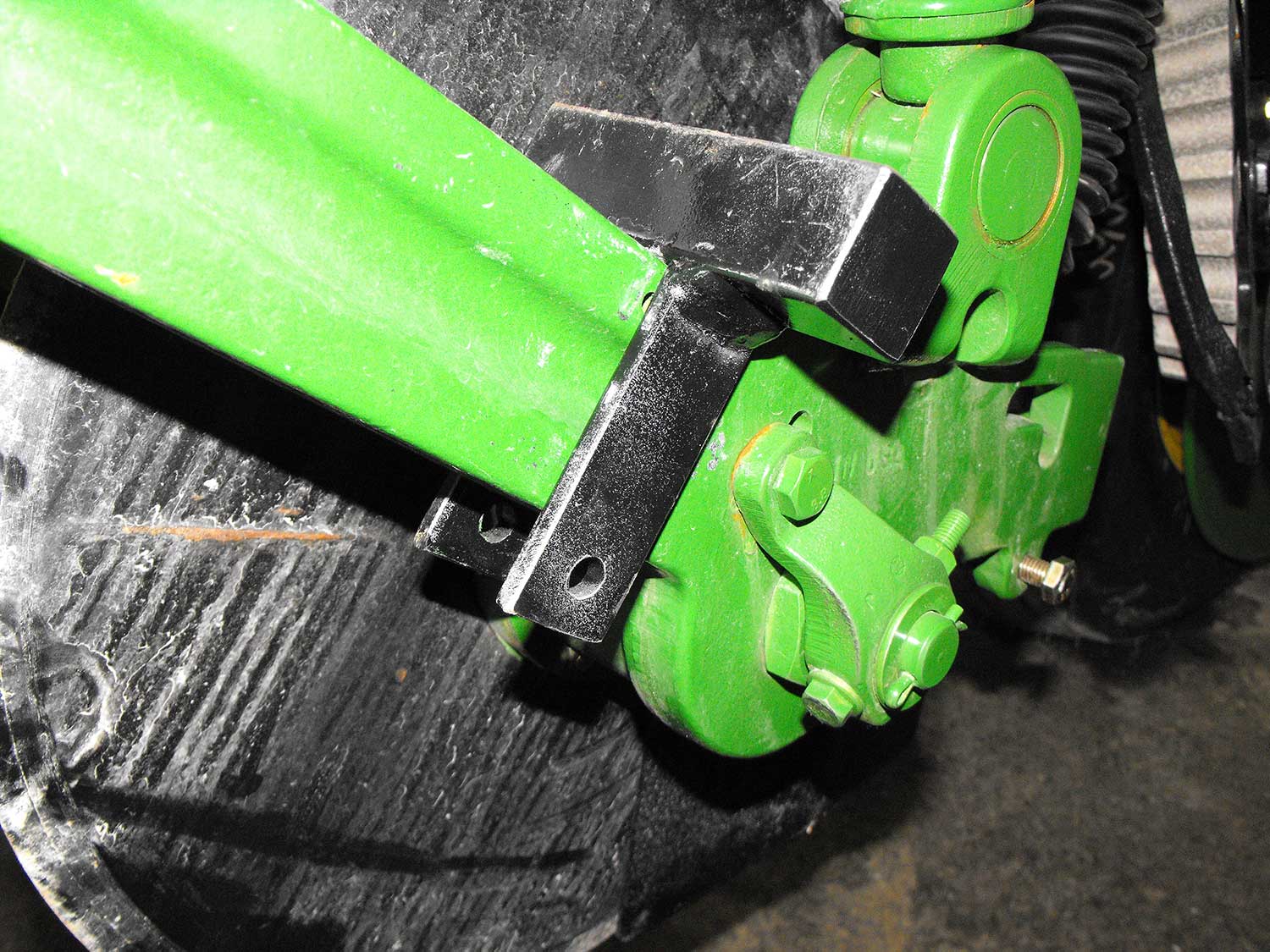

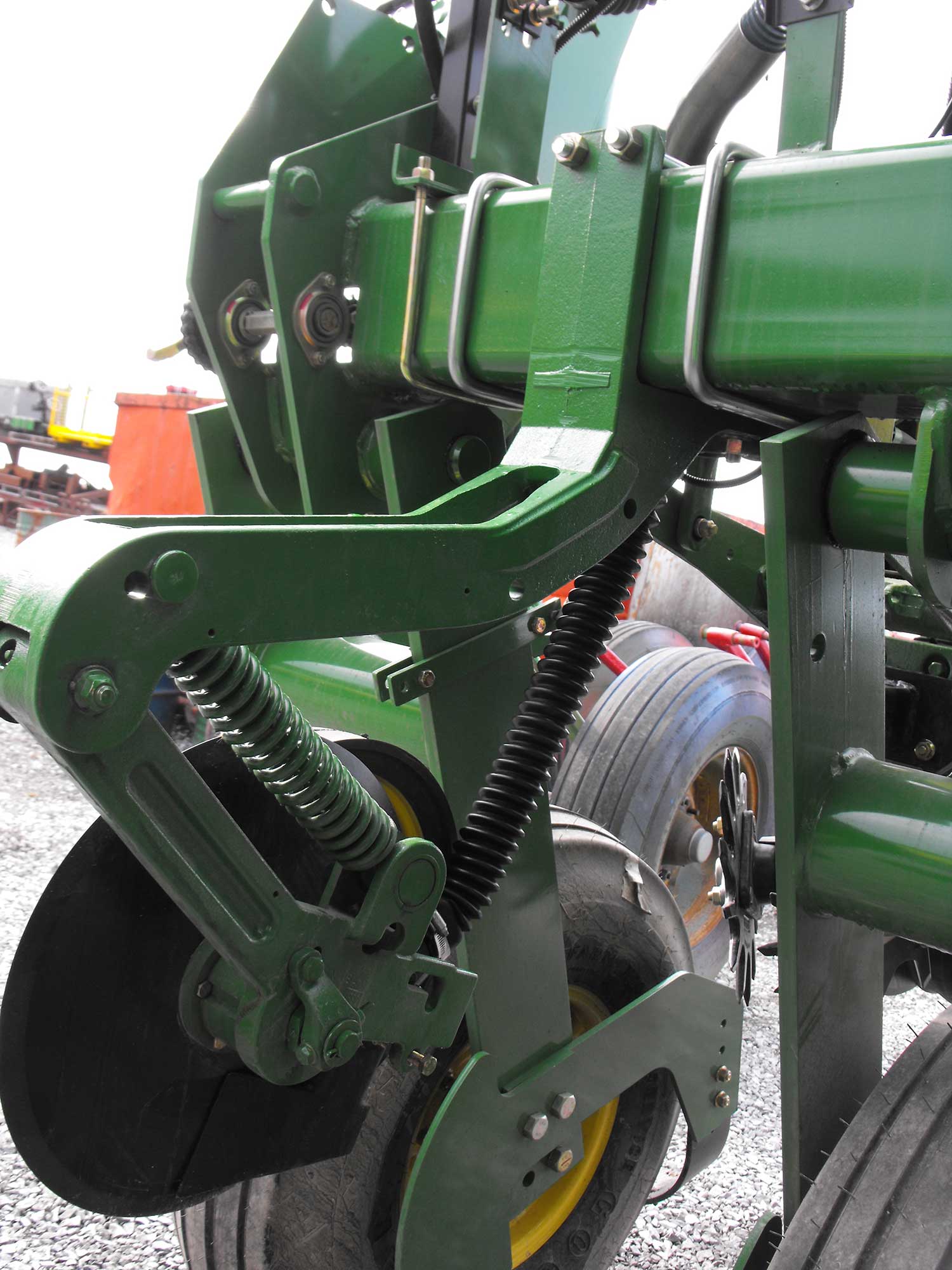

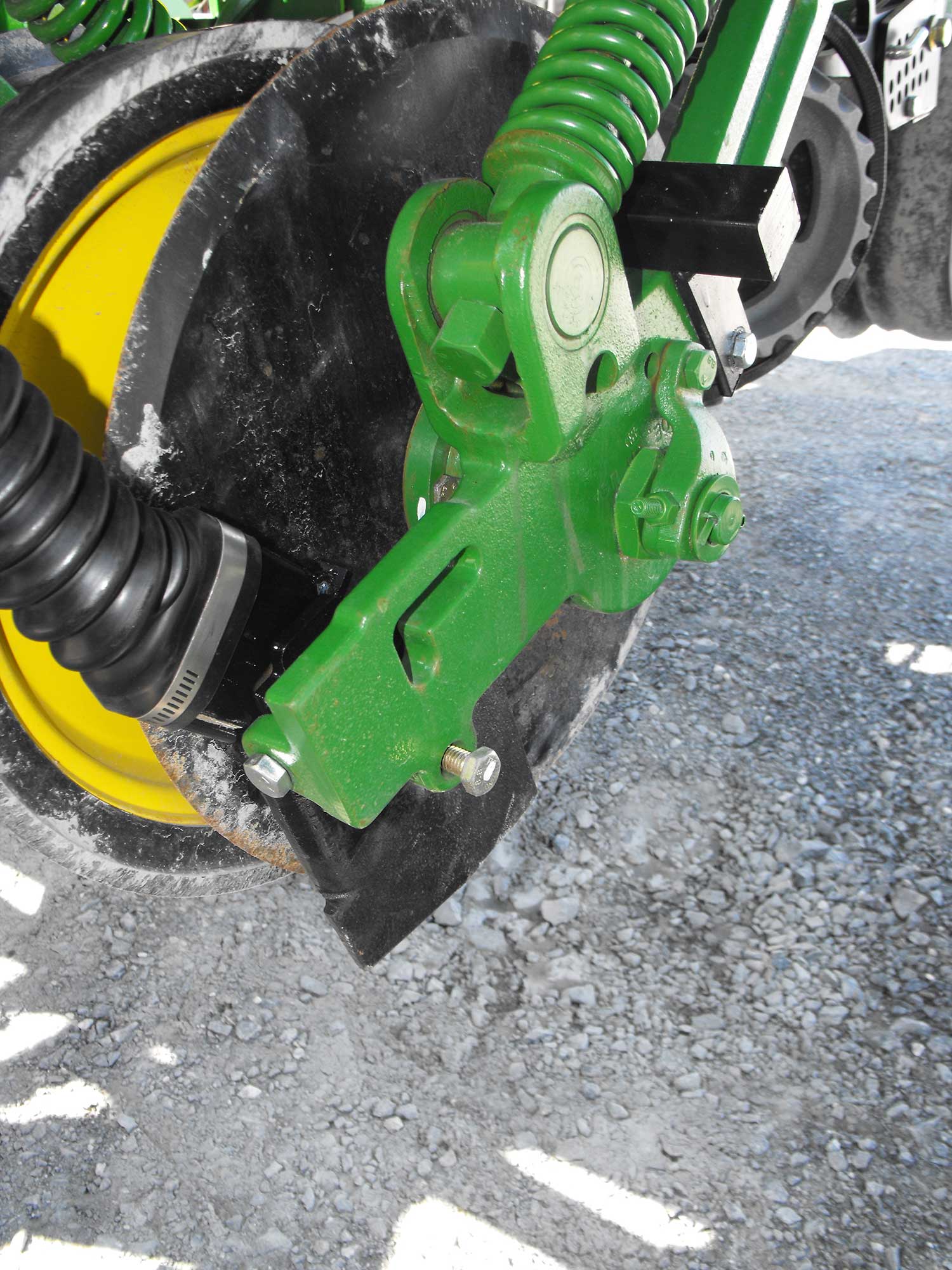

Retrofit dry boot for JD single disk liquid fertilizer openers

These boots are made to convert you John Deere single disk liquid fertilizer openers to granular fertilizer. Please note that there are 2 versions of the John Deere single disk fertilizer openers.



Manuel

John_Deere_1790-1795_ALR0170_2019-.pdf

ALR0170 2019+

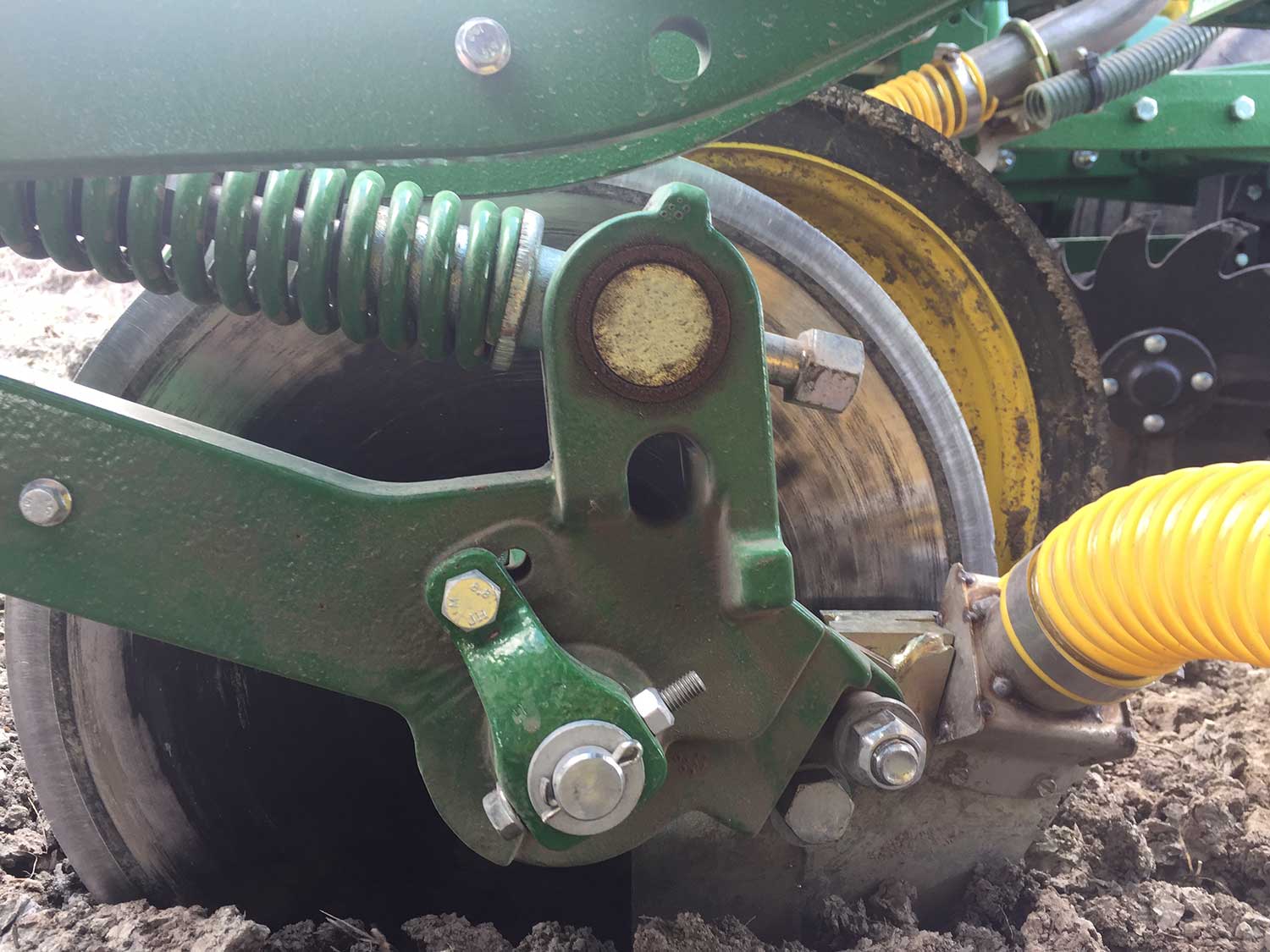

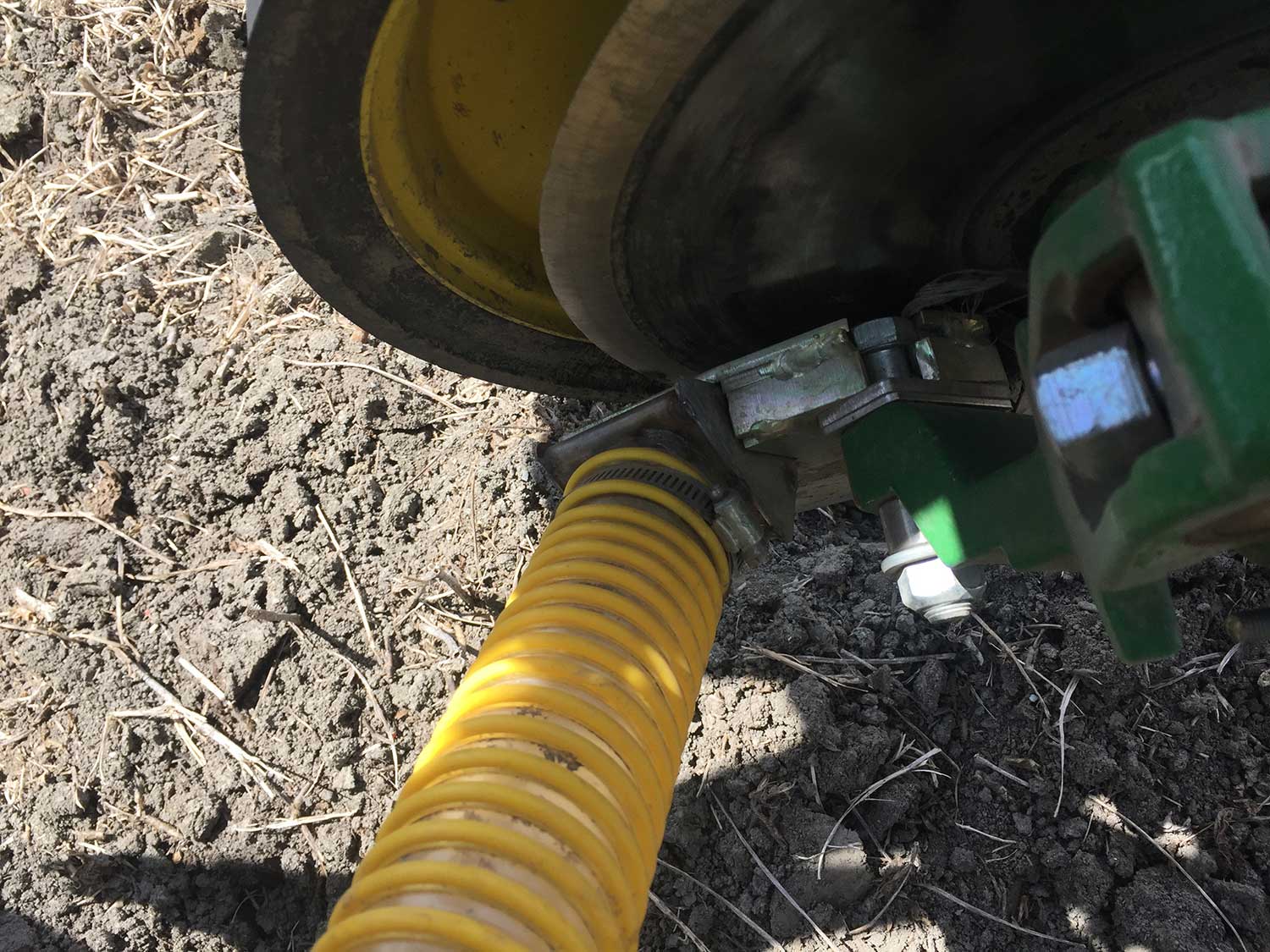

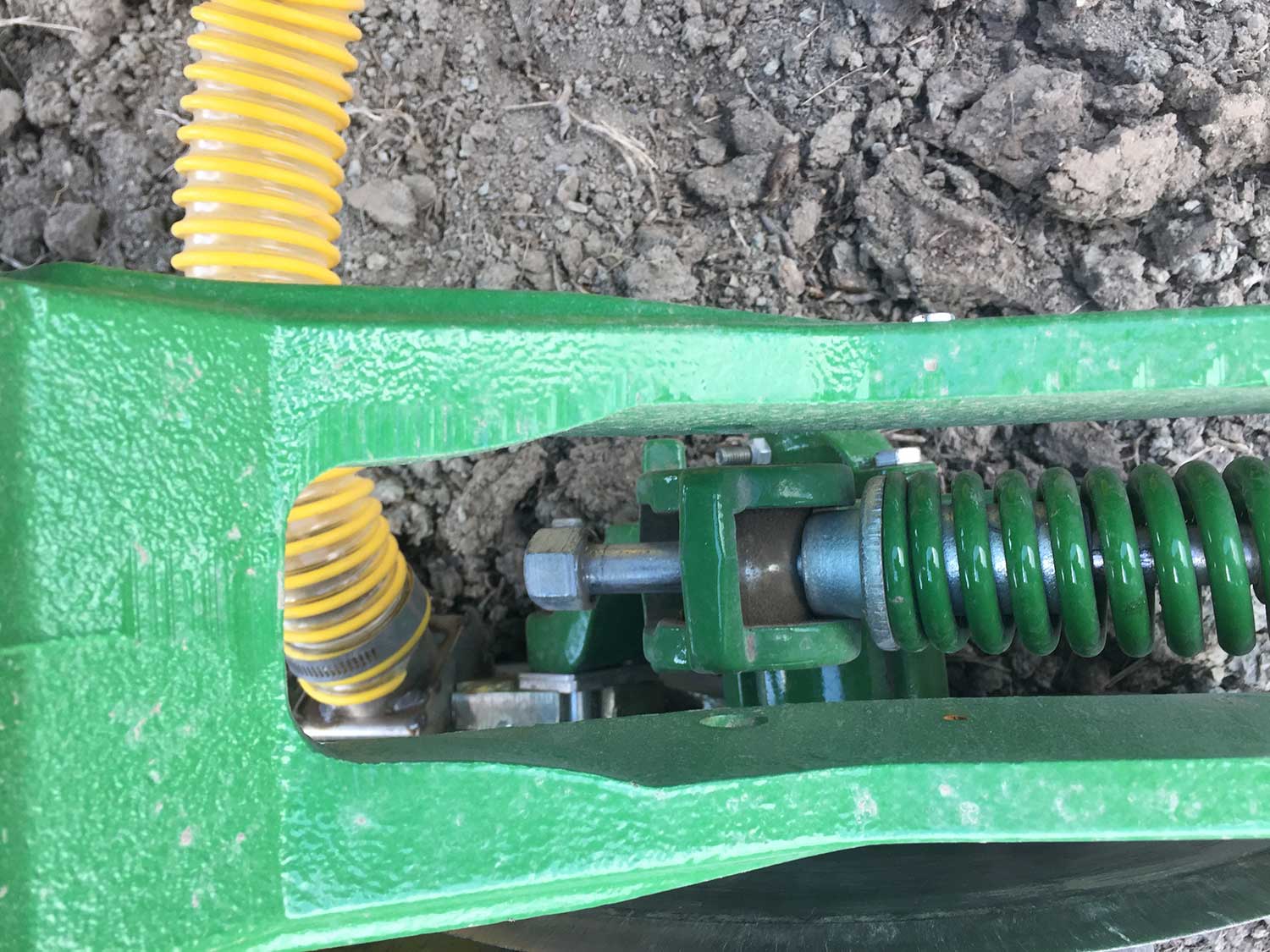

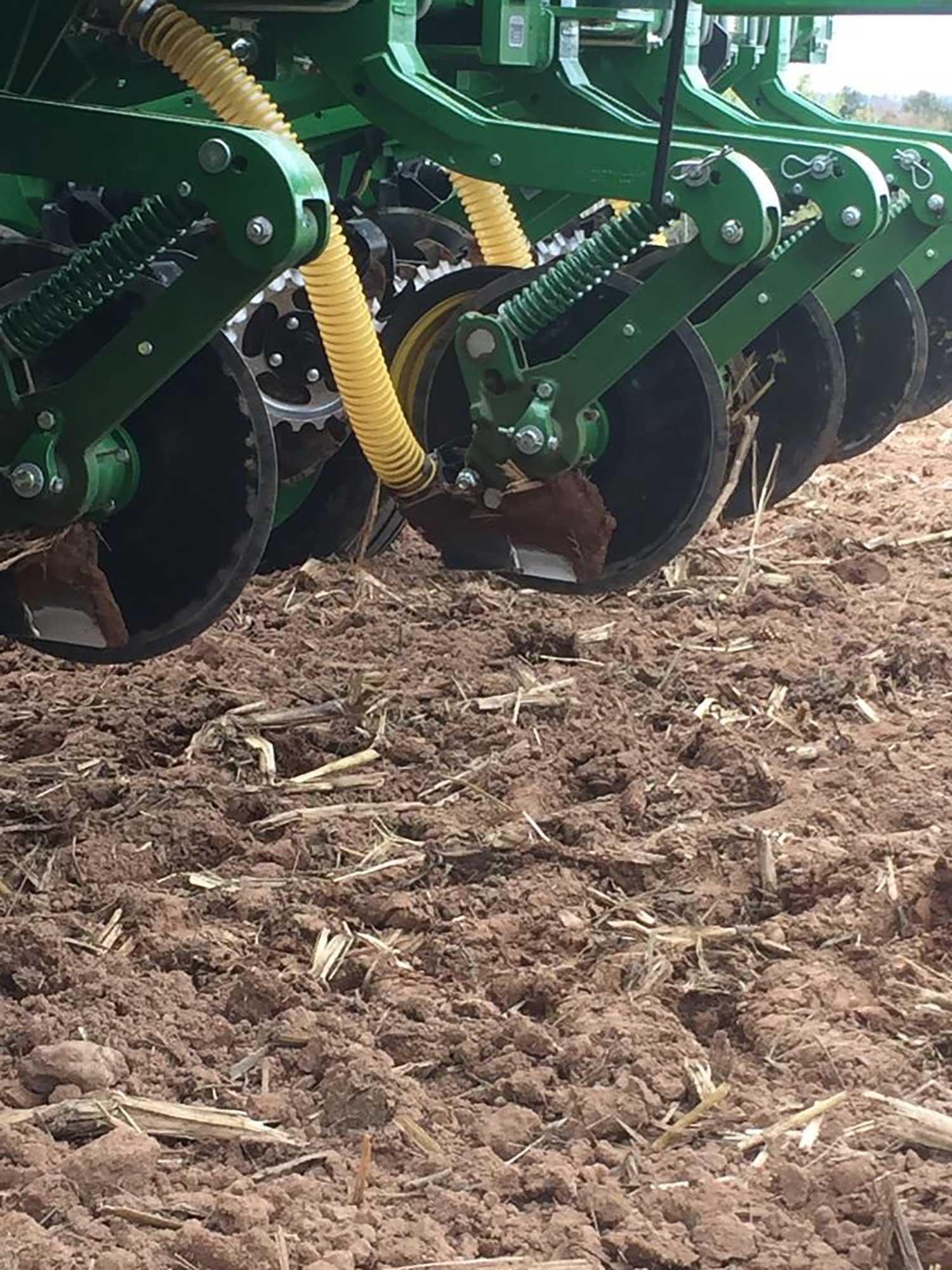

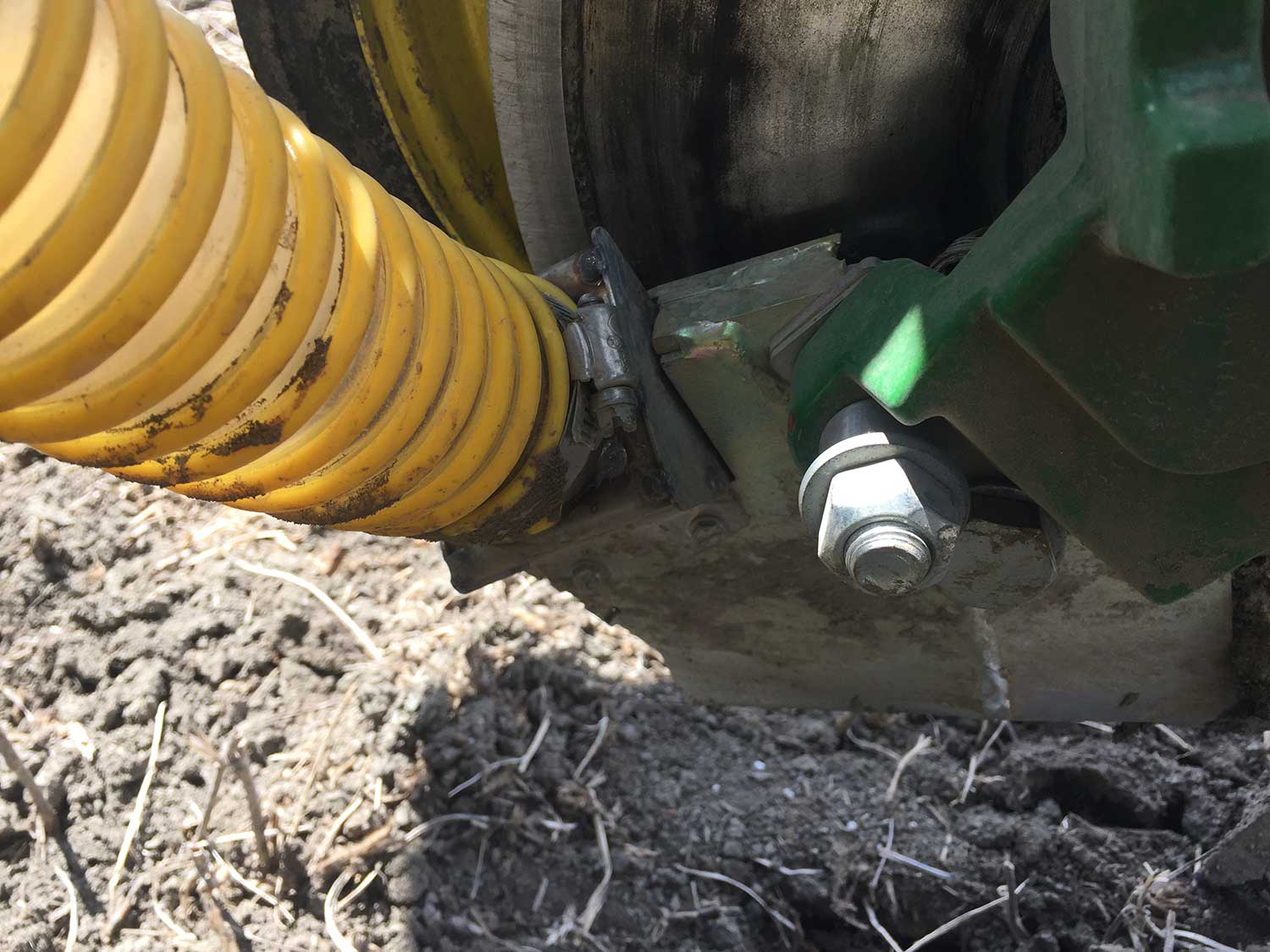

Retrofit dry boot for JD single disk liquid fertilizer openers

These boots are made to convert you John Deere single disk liquid fertilizer openers to granular fertilizer. Please note that there are 2 versions of the John Deere single disk fertilizer openers.



Manuals

ALR0170 2019 - parts manual - parts manual.pdf

Installation instruction JD downpipes 2019 - Installation instruction.pdf

ALR3002

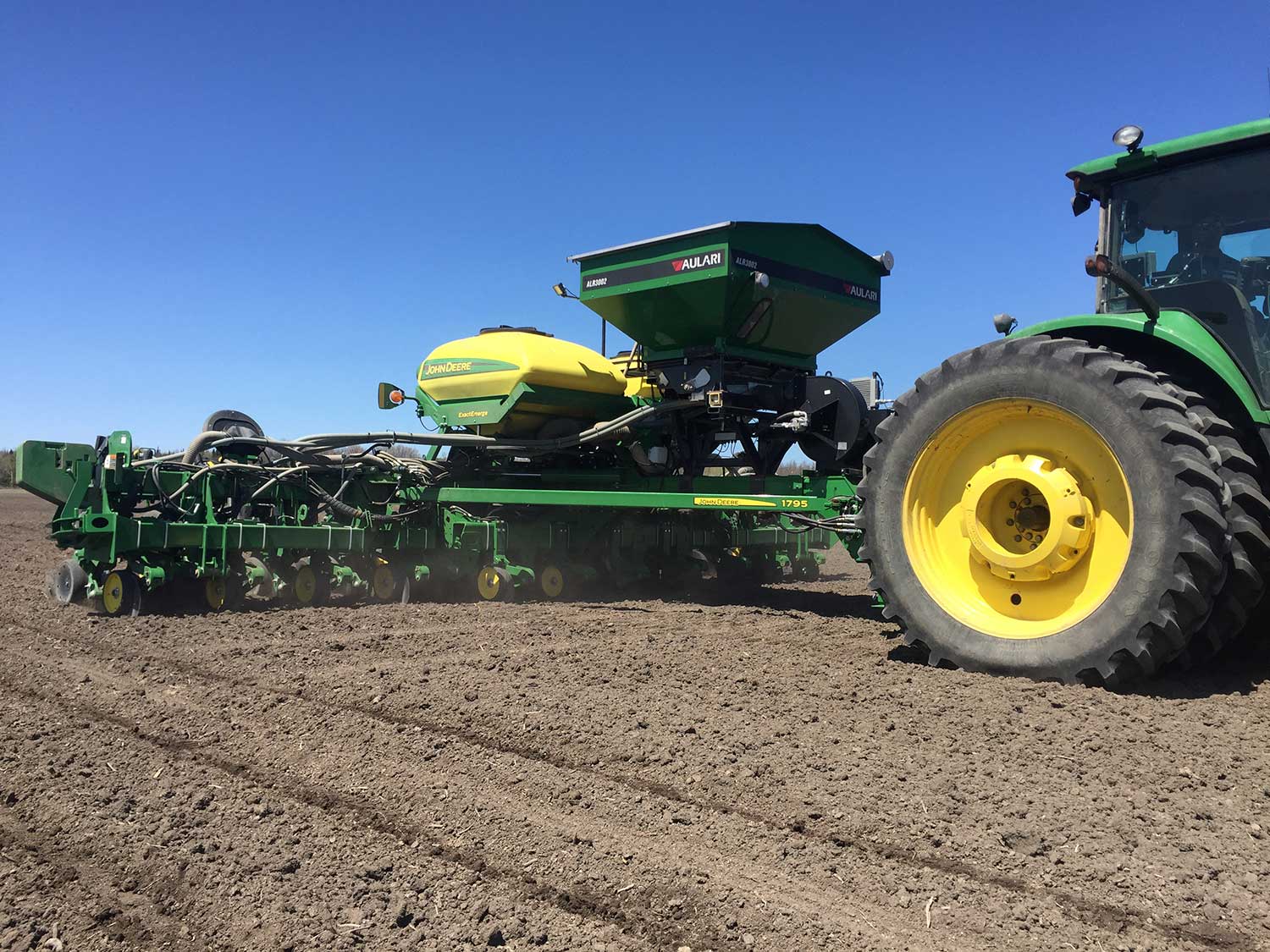

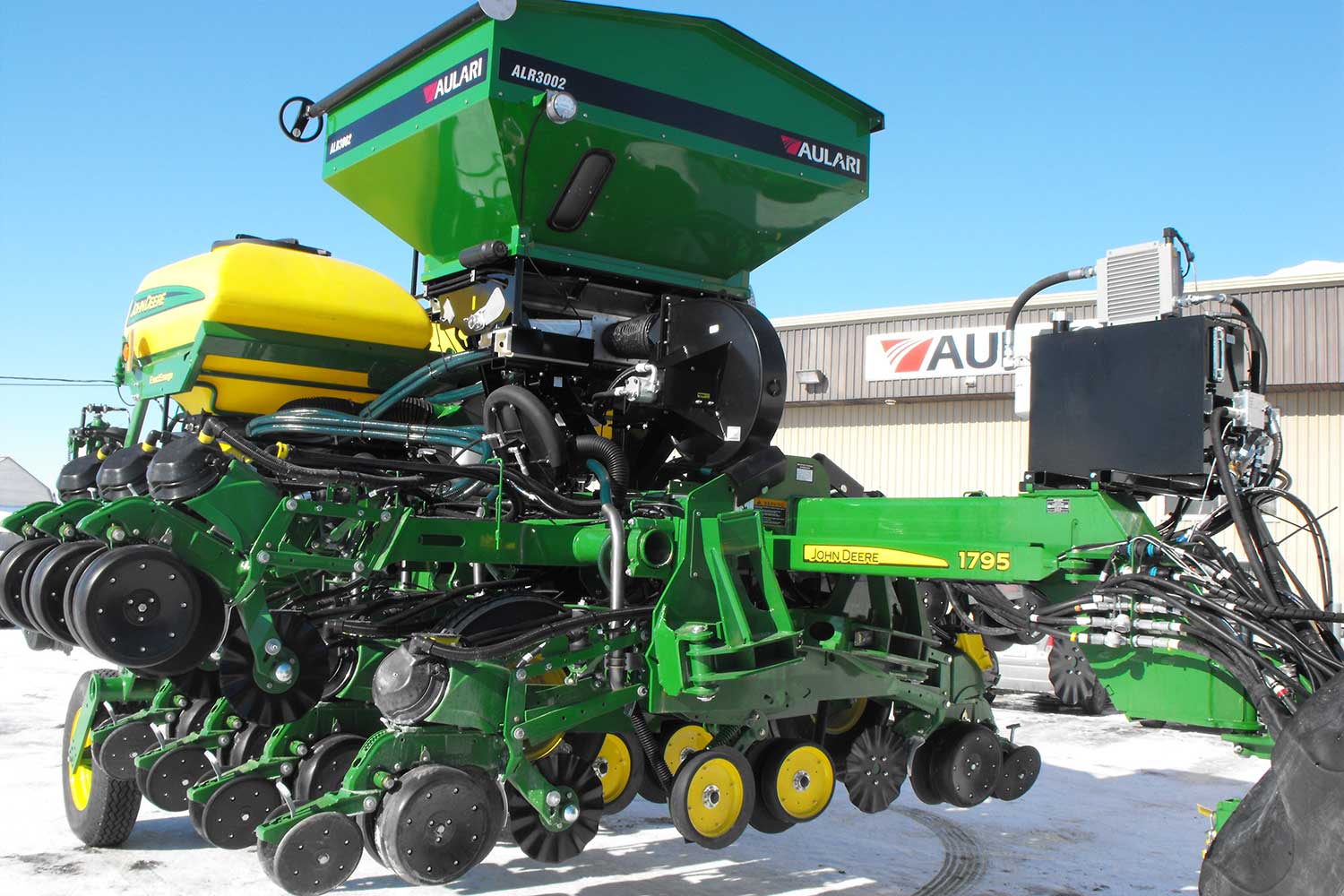

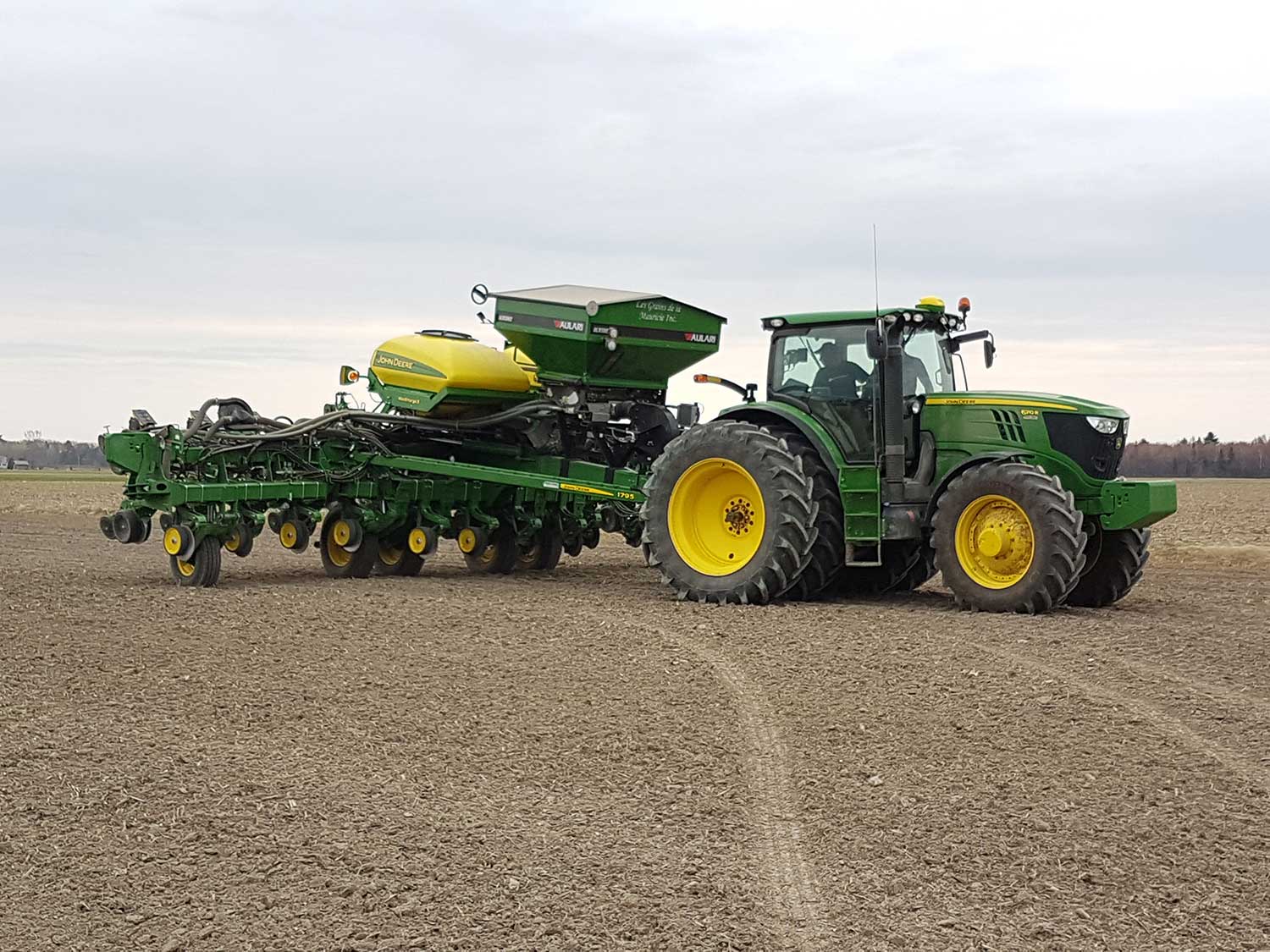

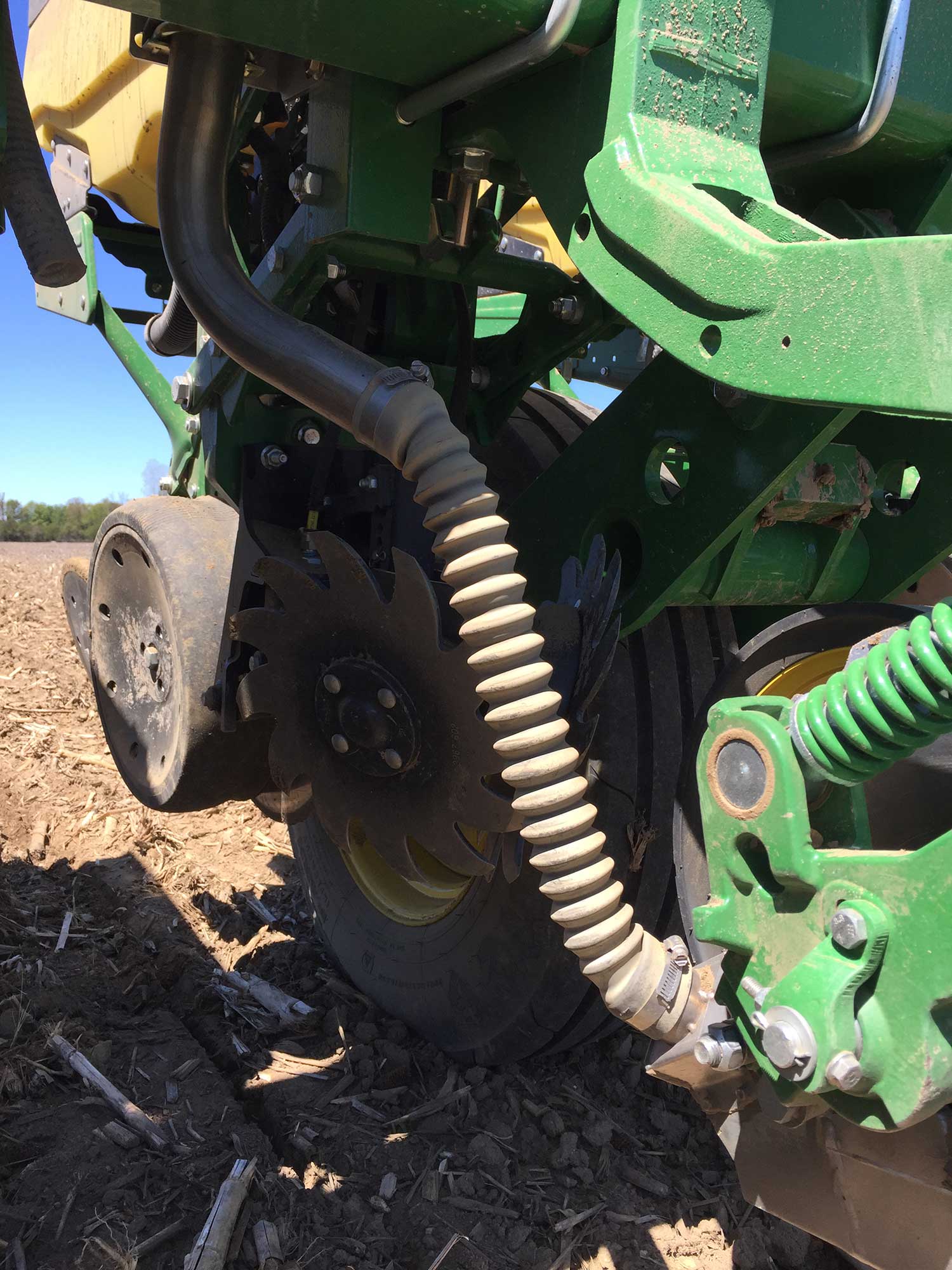

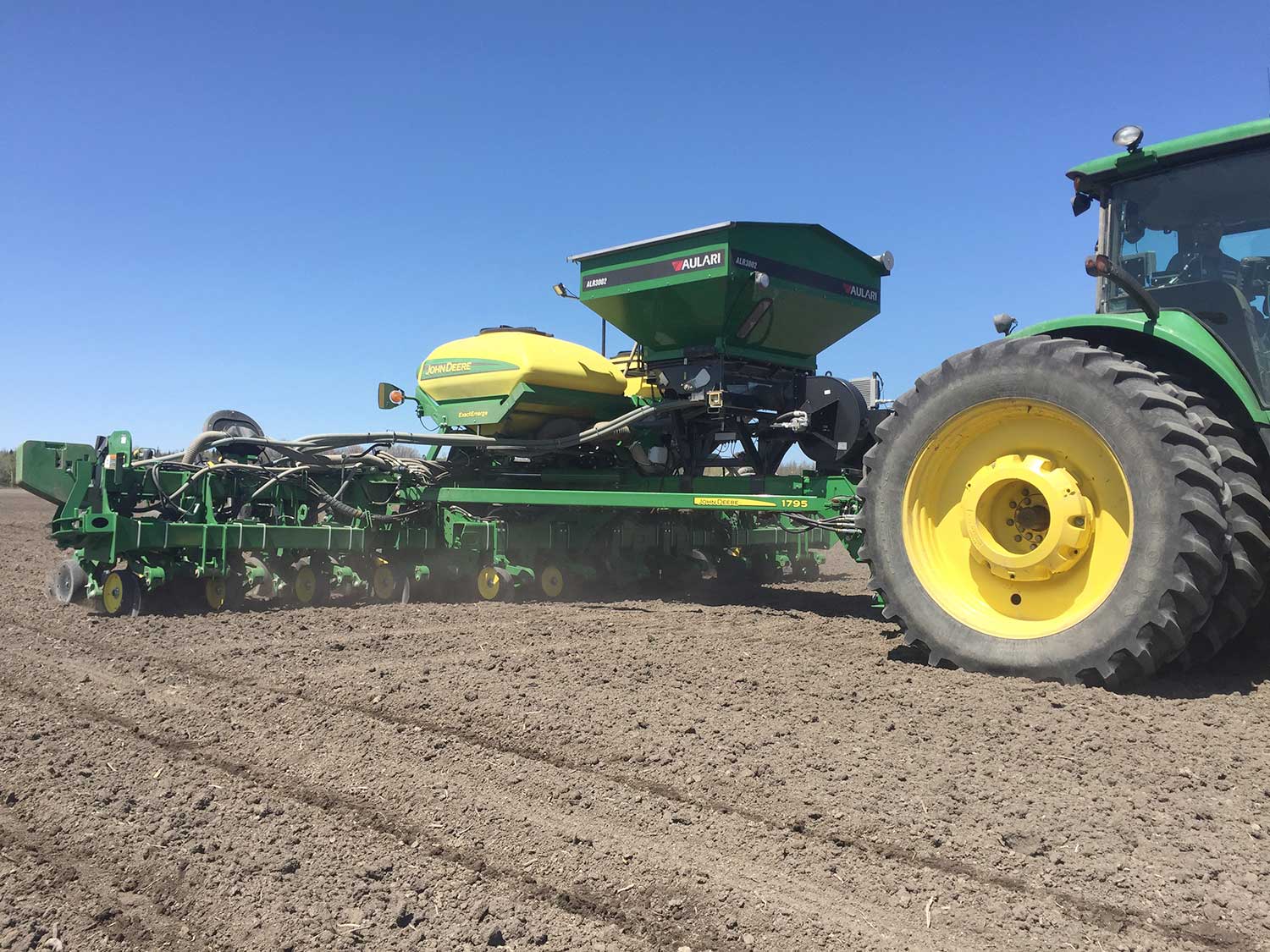

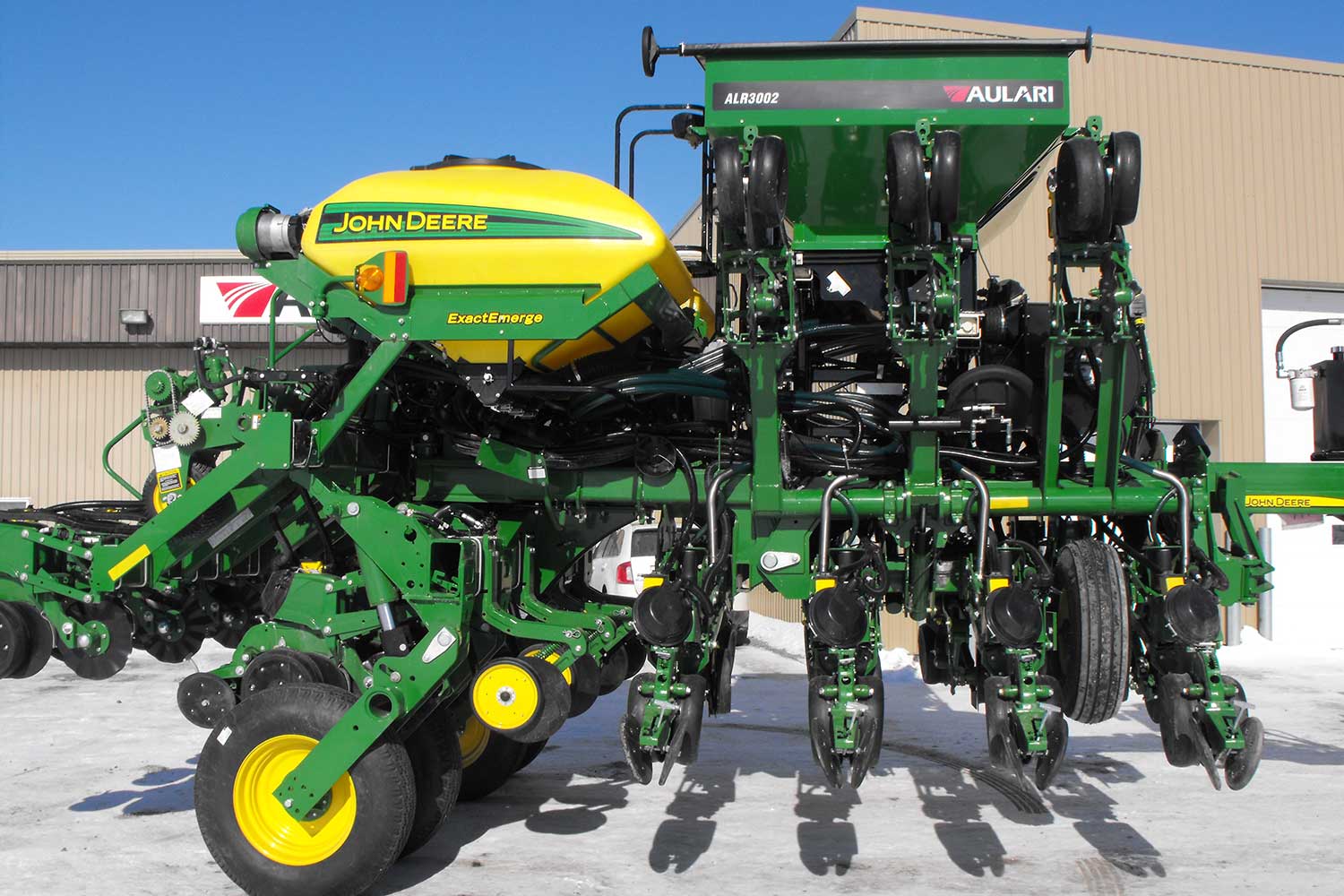

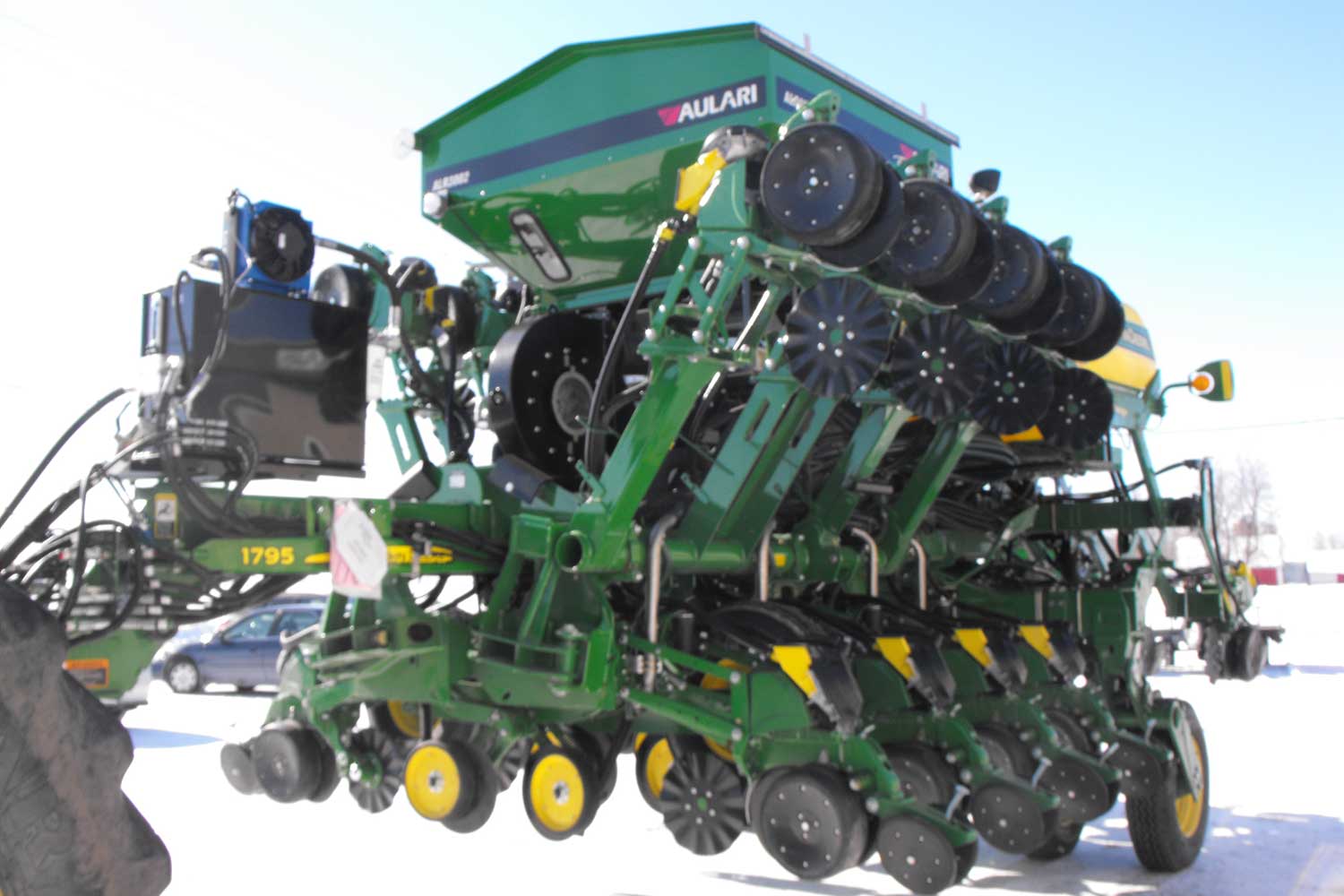

The ALR3002 pneumatic dry fertilizer or soybean seed applicator can be installed on 6, 8, 12, 16, 24, 32 or 36 row planters. Easier to back up then with a pulled behind cart and easier to do your head land too. You can always see your metering shaft

• Maximum capacity :4 tons (8 820 lbs)
• Volume : 3800 liter (135 cubic feet)
• Maximum application width: 27 m (90 feet)

Options:

• Section control
• Scale

Manuals

ALR3002-JD1795-12 - Parts manual - Parts manual (R0).pdf

Operator manual ALR3002-V2-FR-2014-10.pdf

Manual Operator ALR3002-V2-EN-2014-10.pdf
